macintosh classic/color


Minimum OS: 6.0.4

Maximum OS: 7.5.5

Introduced: Sept 1989

Terminated: Oct 1991


Processor

CPU: Motorola MC68000

CPU Speed: 16 MHz

FPU: none

Bus Speed: 16 MHz

Register Width: 32-bit

Data Bus Width: 16-bit

Address Bus Width: 32-bit

ROM: 256 kB

RAM Type: proprietary

Min RAM Speed: 100 ns

Onboard RAM: 1 MB

RAM slots: 1

Maximum RAM: 8 MB


Video

Screen: 1-bit active matrix (backlit after 2/91)

Max Resolution: 640x400


Storage

Hard Drive: optional 40 MB

Floppy Drive: 1 or 2 1.4 MB SuperDrive

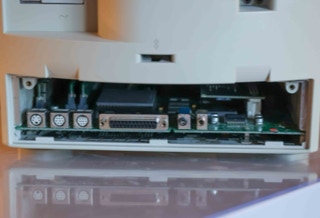

Input/Output

ADB: 1

Serial: 2 Mini DIN-8

SCSI: DB-25

Audio Out: stereo 8 bit

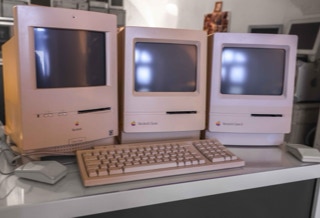

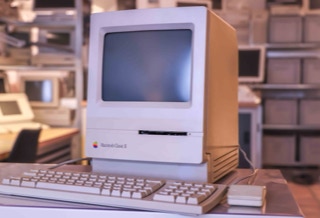

macintosh classic/color

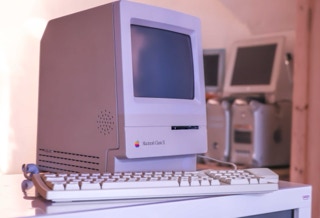

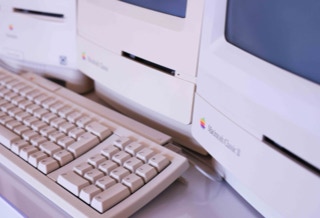

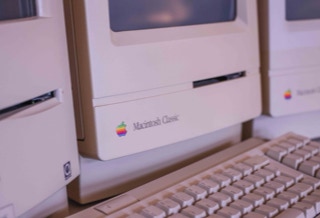

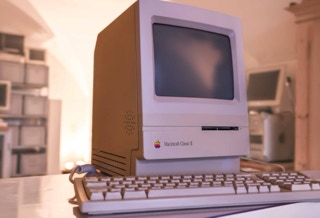

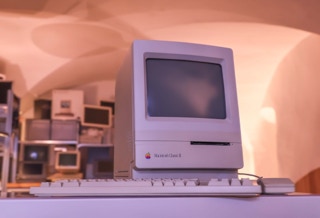

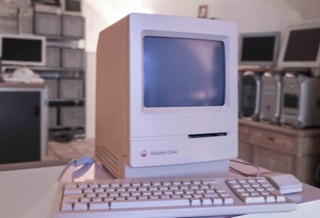

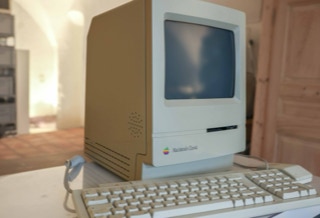

Introduced on october 15, 1990, the macintosh classic was the first apple macintosh to sell for less than CHF 1’600. The classic was an adaptation of the 1984 macintosh 128K industrial design, as had been the earlier Macintosh SE.  The system specifications of the classic were very similar to its predecessors, with the same 9-inch (23 cm) monochrome CRT display, 512×384 pixel resolution, and 4 megabyte (MB) memory limit of the older macintosh computers. Apple's decision to not update the classic with newer technology such as a 68010 CPU, higher RAM capacity or color display ensured compatibility with the mac's by-then healthy software base as well as enabled it to fit the lower price Apple intended for it. Nevertheless, the Classic featured several improvements over the aging macintosh plus, which it replaced as apple's low-end mac computer. It was up to 25 percent faster than the plus and included an apple superdrive 3.5-inch (9 cm) floppy disk drive as standard.

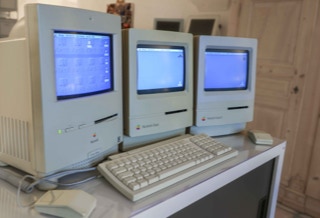

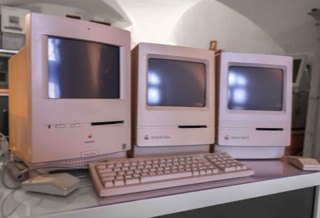

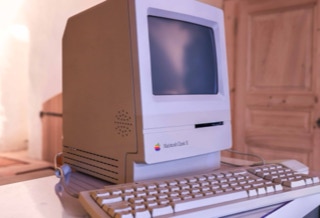

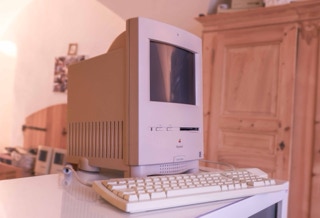

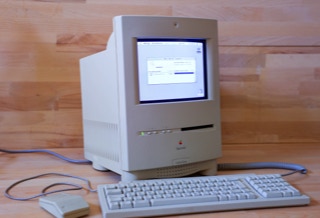

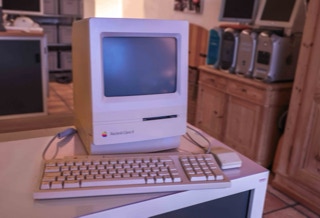

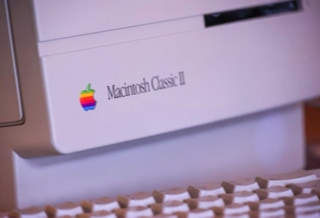

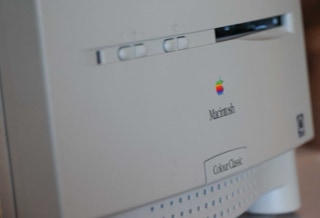

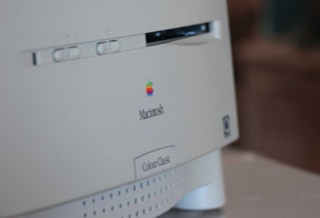

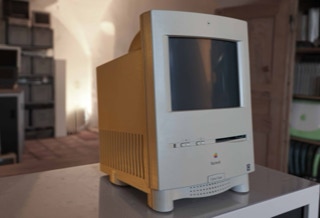

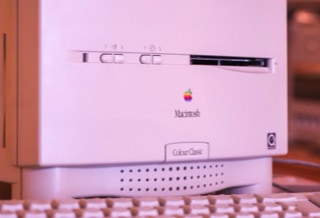

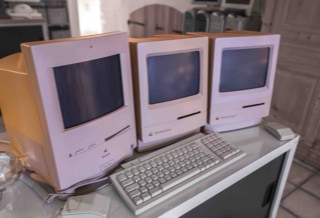

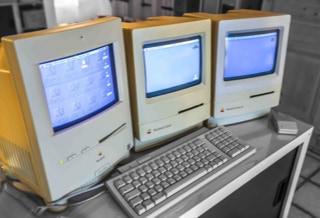

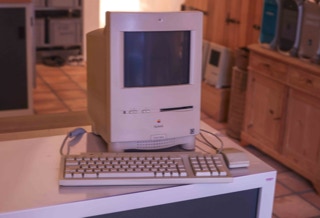

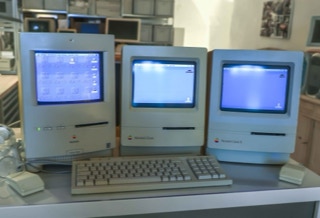

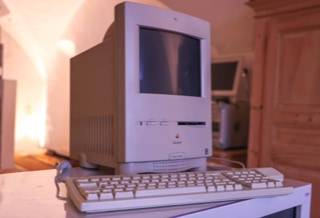

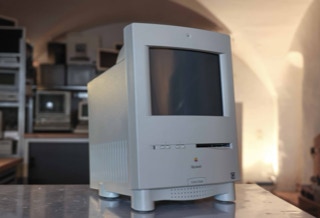

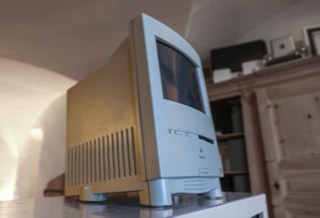

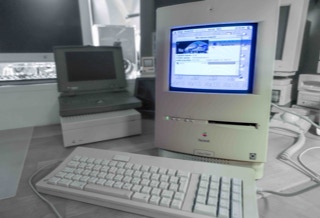

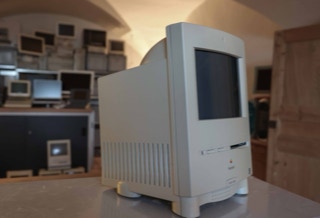

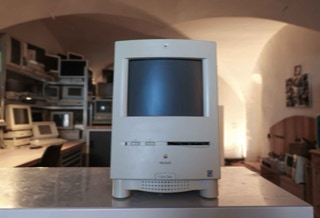

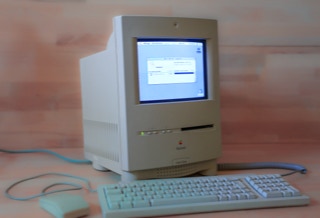

The color classic was identical to the classic II, except for a color screen, a larger ROM, and a restyled case. Released only in japan, the color classic II improved on the original color classic by doubling both the processor speed to 33 MHz and the data path to 32-bit. Also added was stereo sound output.
