power macintosh G4

Minimum OS: 8.6

Maximum OS: 10.4.11

Introduced: Sep 1999

Terminated: Dec 1999

Processor

CPU: PowerPC 7400 "G4"

CPU Speed: 350/400 MHz

FPU: integrated

Bus Speed: 100 MHz

Register Width: 32-bit

Data Bus Width: 64-bit

Address Bus Width: 32-bit

ROM: 1 MB ROM + 3 MB

RAM Type: PC100

Minimum RAM Speed: 100 MHz

Onboard RAM: 0 MB

RAM slots: 4

Maximum RAM: 1 GB

Level 1 Cache: 32 kB data, 32 kB instruction

Level 2 Cache: 1 MB backside, 1:2

Expansion Slots: 3 64-bit 33 MHz PCI, 1 32-bit 66 MHz PCI (filled)

Video

GPU: ATI RAGE 128

VRAM: 16 MB

Max Resolution: all resolutions supported

Video Out: VGA

Storage

Hard Drive: 10 GB

ATA Bus: ATA-33

Zip Drive: optional

Optical Drive: 32x CD-ROM

Input/Output

USB: 2

Firewire: 2

Audio Out: stereo 16 bit

power macintosh G4

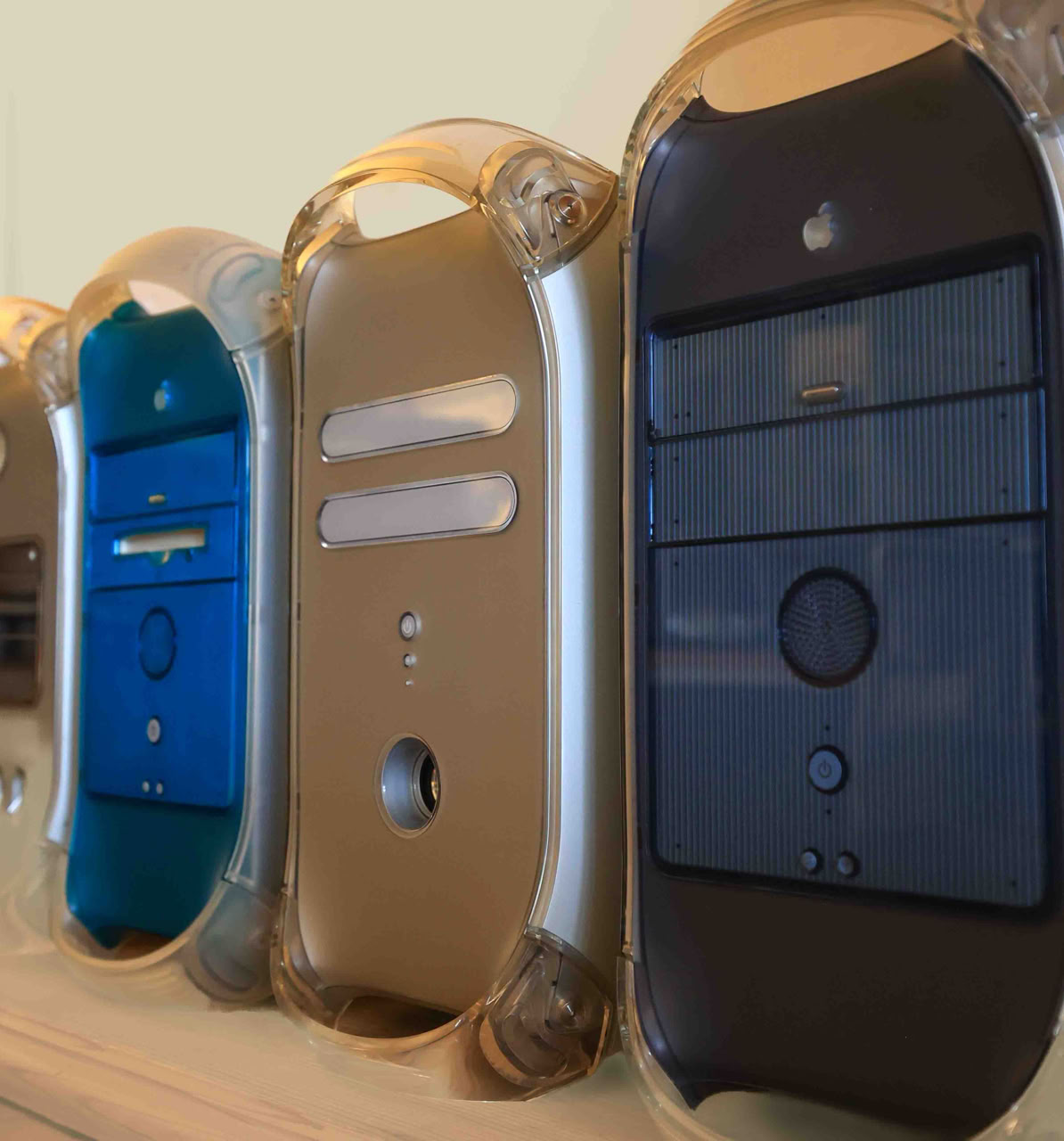

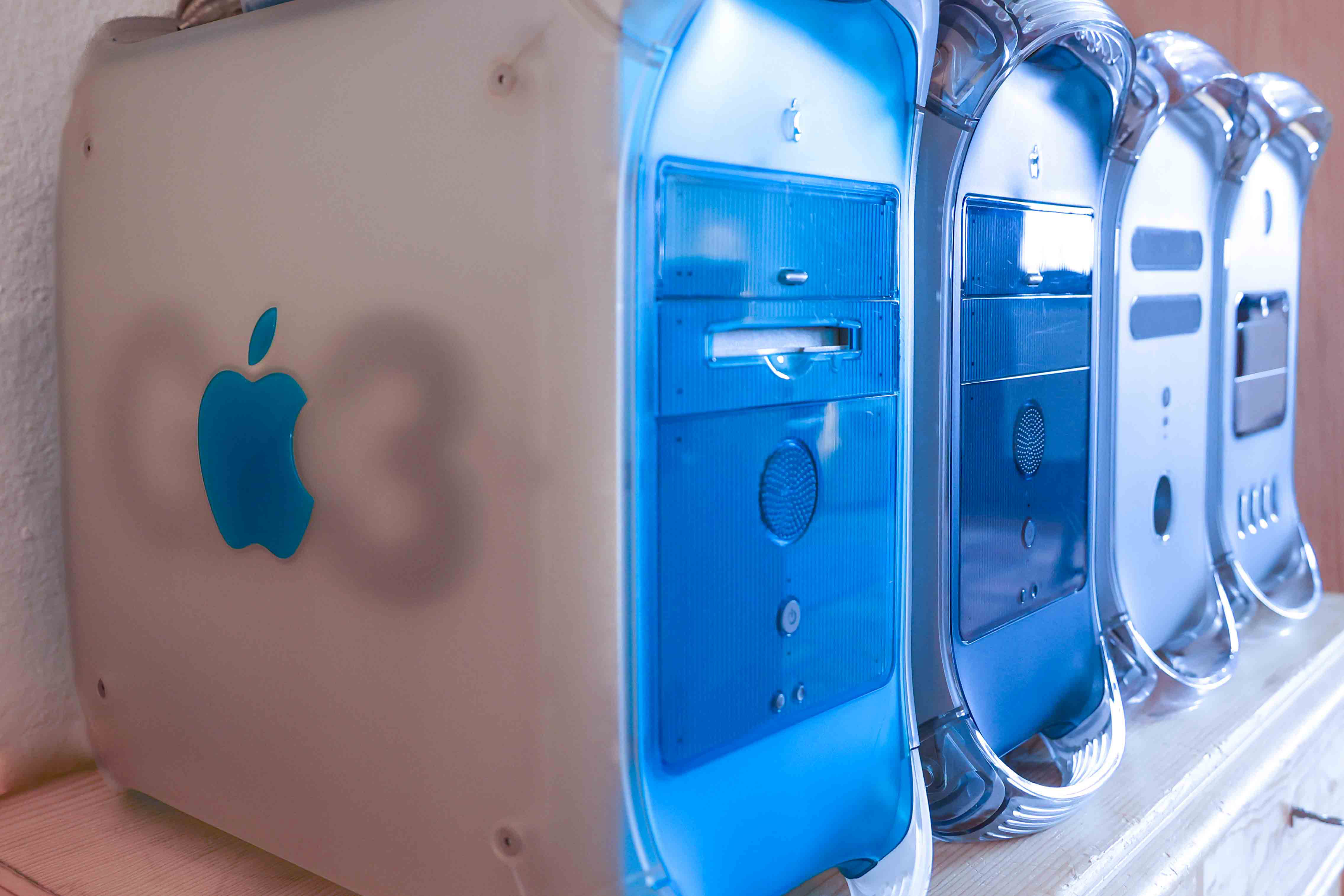

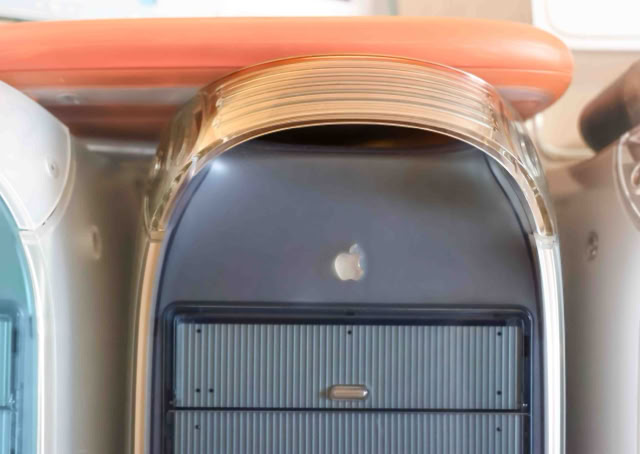

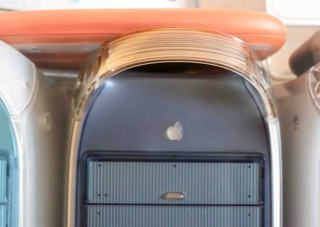

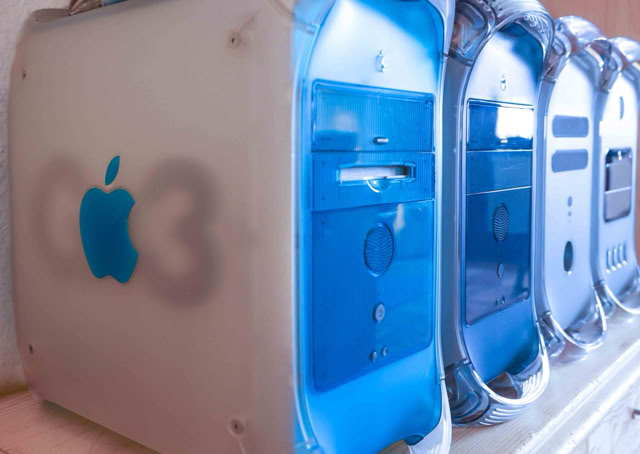

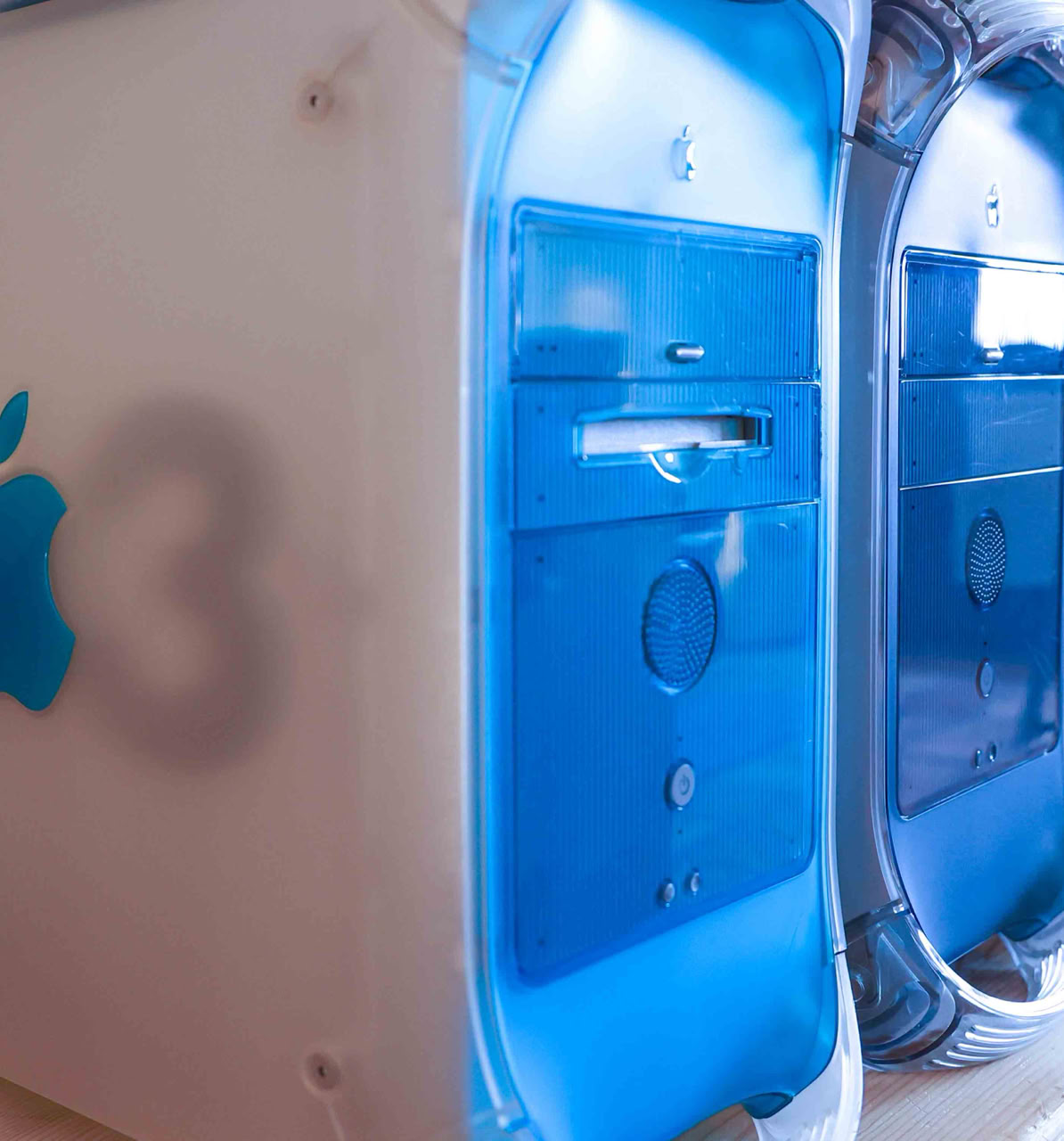

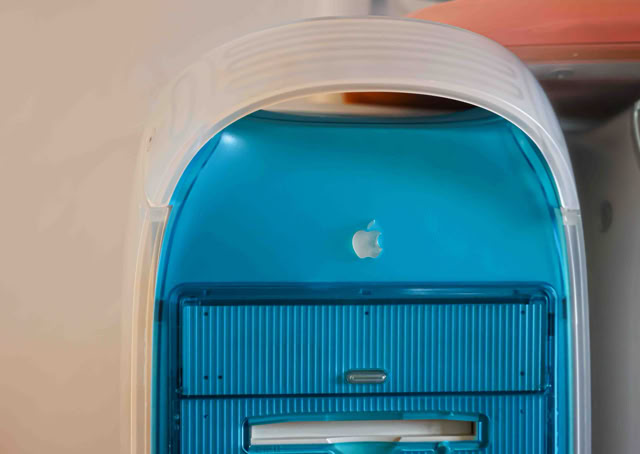

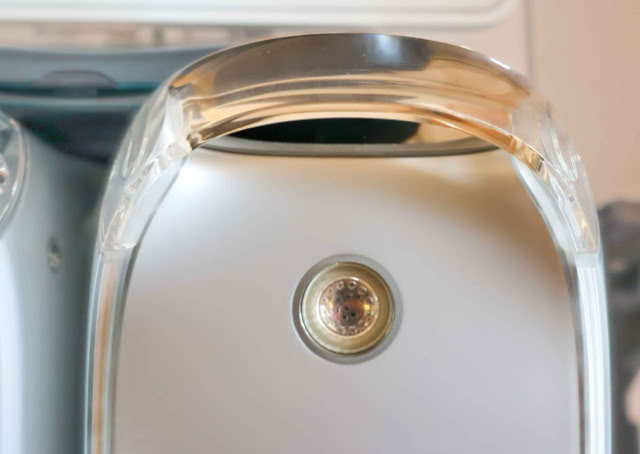

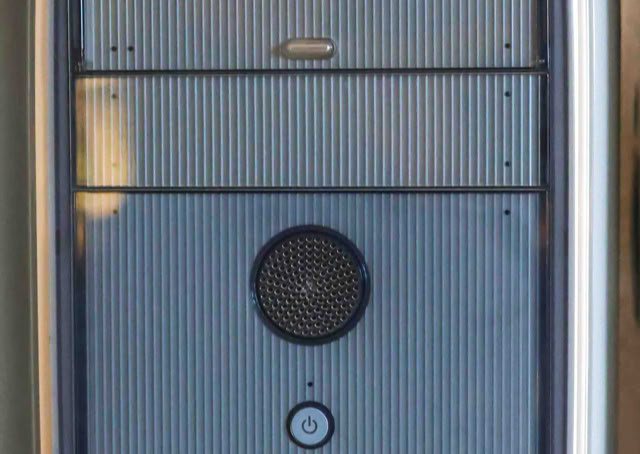

The powermac G4 (PCI Graphics) was announced in 1999. Based on the same logic board as the „blue and white" G3, the G4 PCI added a motorola MPC 7400 processor to an already successful machine. The G4 PCI introduced the new case design, similar to that of the blue and white G3, but tinted in the new professional color, "graphite."

Announced in July 2000, the powermac G4 (gigabit ethernet) added dual-processor power to the G4 line. Available with a single 400 MHz G4, or dual 450 or 500 MHz G4s,.

In July 2003, with the arrival of the powermac G5, the powermac G4 (MDD) was revived as the last OS 9 Bootable powermac ever. This configuration included a single 1.25 GHz processor, 256 MB of RAM, an 80 GB hard drive and a combo CD-RW/DVD-ROM drive.
