Powerbook Duo 270c
Minimum OS: 7.1
Maximum OS: 7.6.1
Introduced: October 1992
Terminated: April 1994
Processor
CPU: Motorola MC68030
CPU Speed: 33 MHz
FPU: 68882
Bus Speed: 33 MHz
Register Width: 32-bit
Data Bus Width: 32-bit
Address Bus Width: 32-bit
Level 1 Cache: 256 bytes data, 256 bytes instruction
ROM: 1 MB
RAM Type: unique
Min RAM Speed: 70 ns
Onboard RAM: 4 MB
RAM slots: 1
Maximum RAM: 32 MB
Expansion Slots: modem, Dock (152-pin PDS)
Video
Screen: 8.4" active matrix LCD
Max Resolution: 8 bit 640x480/16 bit 640x400
Storage
Hard Drive: 240 MB
Input/Output
Serial: 1 Mini DIN-8
Speaker: mono 8 bit
Microphone: mono 8 bit

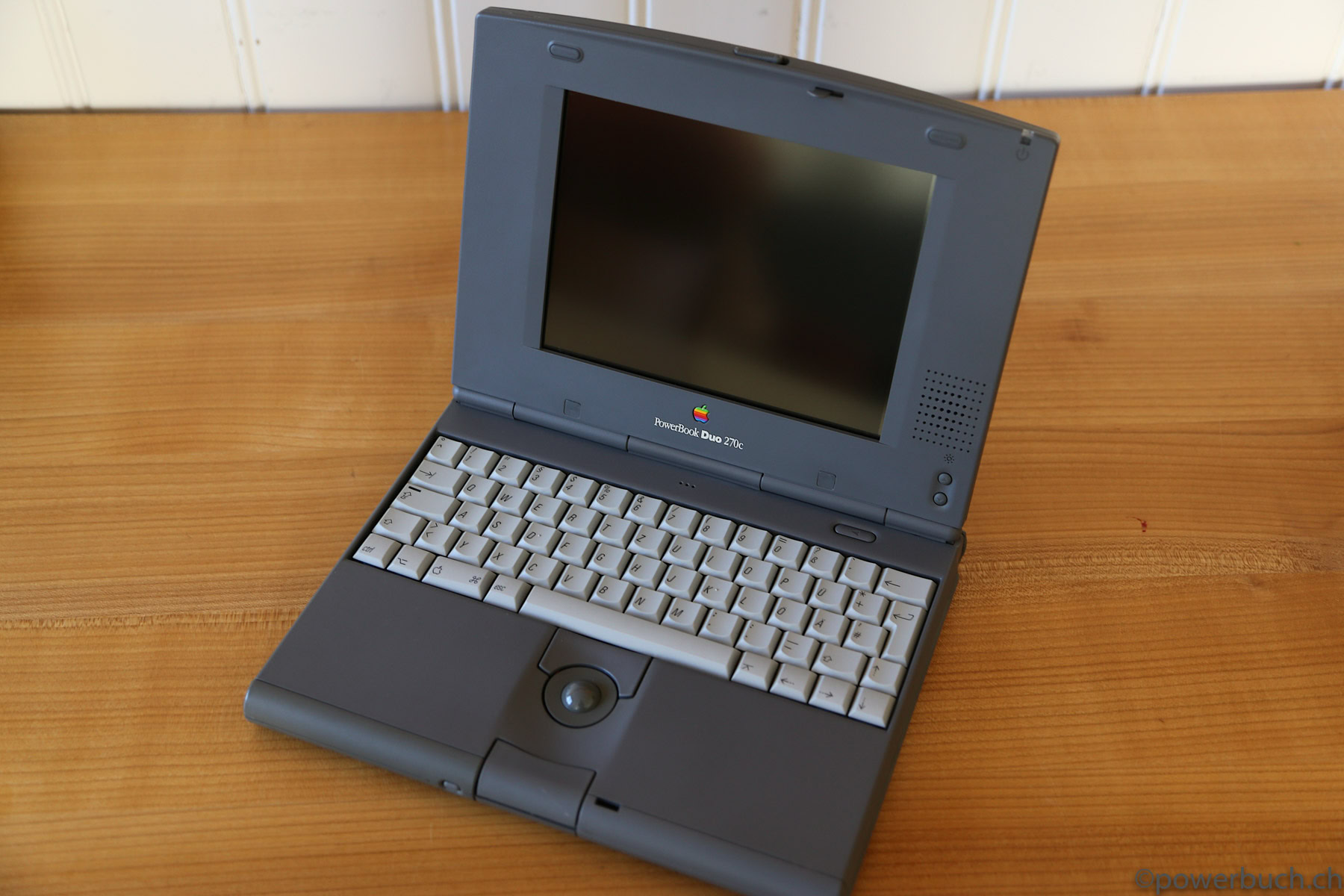

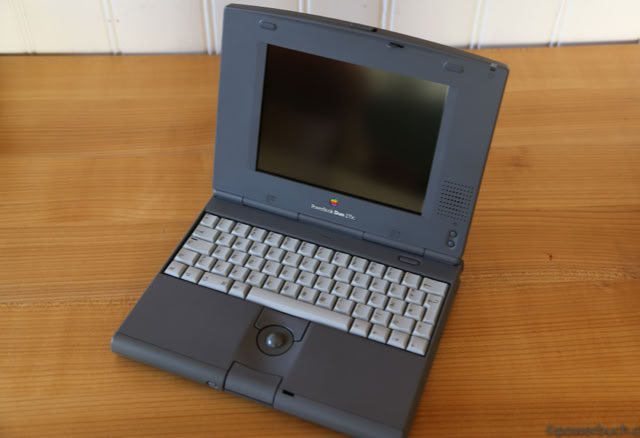

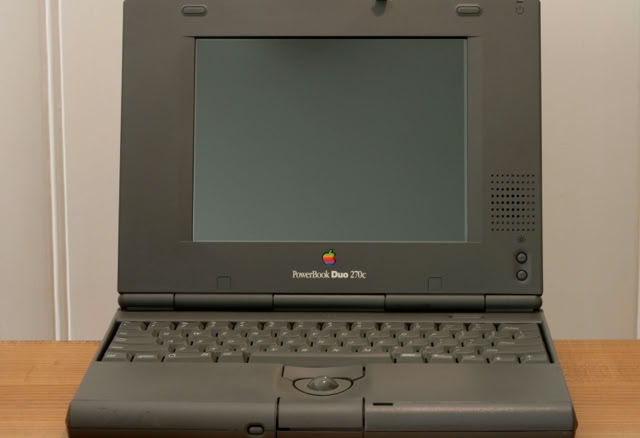

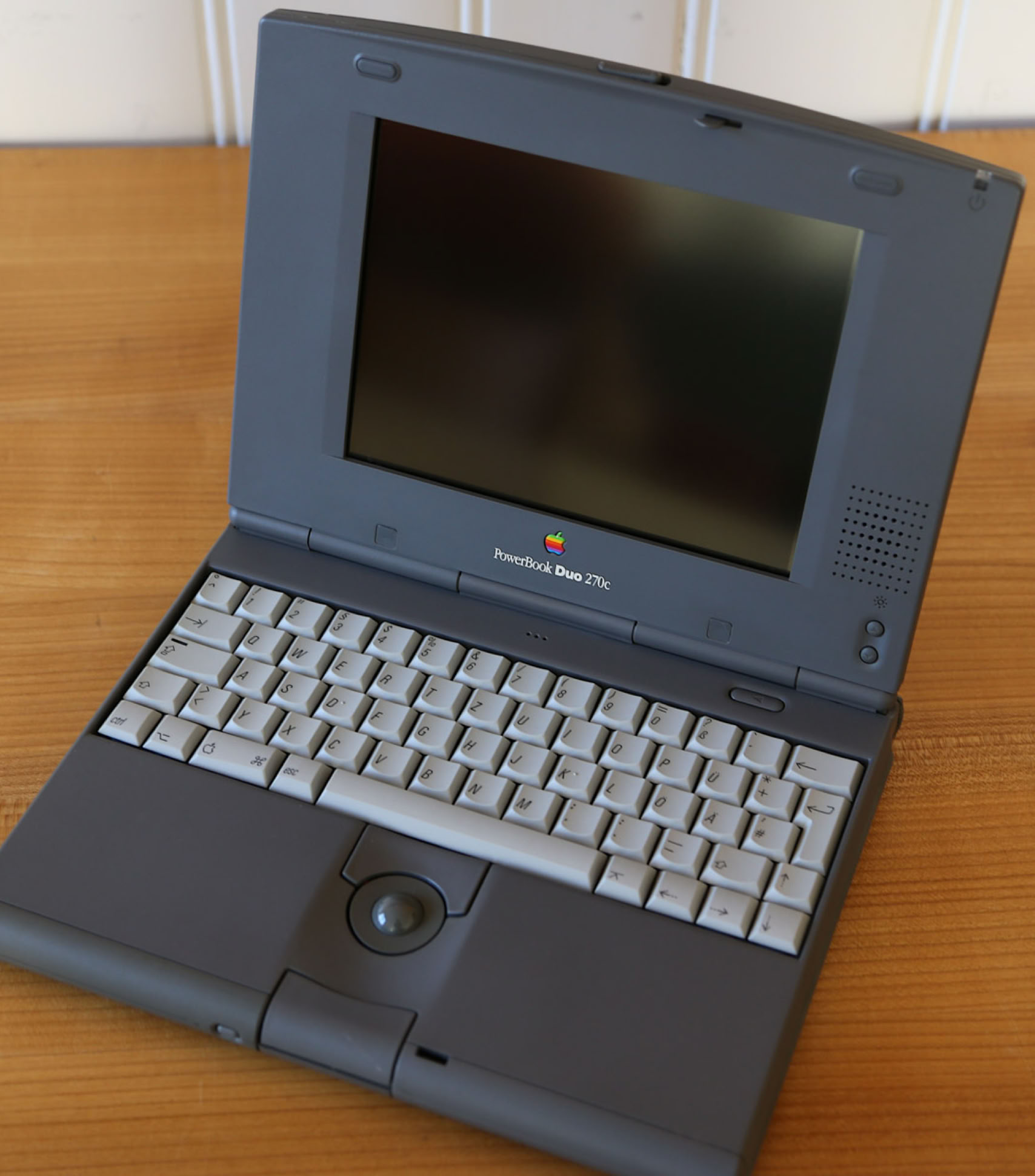

Powerbook Duo 270c

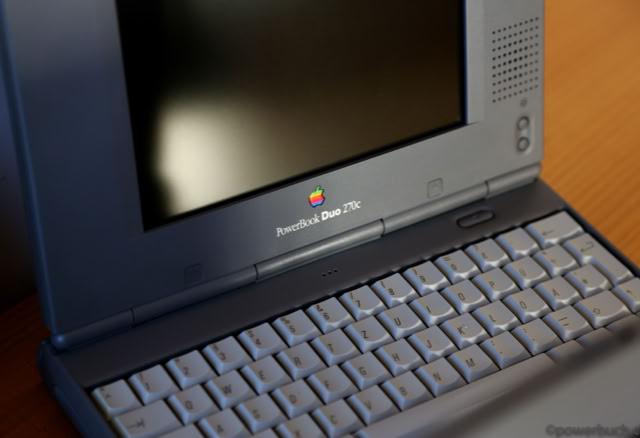

Announced in october 1993, the powerbook duo 270c further improved on previous duos by adding a 68882 FPU to its 33 MHz 68030 processor. It was also the first duo to include an active-matrix 16 bit screen.
What truly made the duo 270c special was its duo concept: To save weight and size, many ports were omitted in mobile mode. ADB, SCSI, serial ports, a floppy disk drive, video output, and Ethernet were only available when the device was docked in a duo docking station (minidock or duo dock). Docked, the duo essentially became a fully functional desktop mac – complete with an external monitor, keyboard, mouse, and network connectivity.

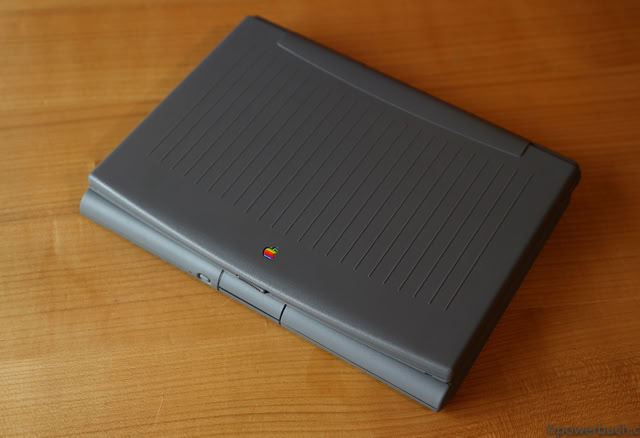

Weighing in at around 2.1 kg, the powerbook duo 270c was extremely portable for its performance class. The NiMH battery allowed for approximately 2–3 hours of runtime, depending on usage. Its slim, minimalist design made it particularly popular with business travelers.
In retrospect, the powerbook duo 270c is considered one of the best 68k notebooks Apple ever built: very fast, exceptionally well-made, and conceptually ahead of its time. Today, it is highly prized by collectors, especially when purchased complete with the dock, as only then does its original usage concept become fully apparent.
