power macintosh G5


Minimum OS: 10.2.8

Maximum OS: 10.5.8

Introduced: Jun 2003

Terminated: Jun 2004


Processor

CPU: PowerPC 970 "G5"

CPU Speed: 1.6/1.8/2x1.8/2x2.0 GHz

FPU: integrated

Bus Speed: 800/900/900/1000 MHz

Register Width: 64-bit

Data Bus Width: 64-bit

Address Bus Width: 64-bit

ROM: 1 MB ROM + 3 MB

RAM Type: PC3200 DDR

Min RAM Speed: 400 MHz

Onboard RAM: 0 MB

RAM slots: 8

Maximum RAM: 8.0 GB

Level 1 Cache: 32 kB data, 64 kB instruction

Level 2 Cache: 512 kB on-processor

Expansion Slots: 64-bit 133 MHz PCI-X, 2 64-bit 100 MHz PCI-X


Video

GPU: NVIDIA GeForce FX 5200 Ultra (8X AGP)

VRAM: 64 MB

Max Resolution: all resolutions supported

Video Out: DVI, ADC

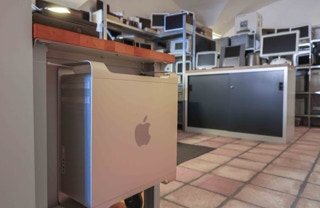

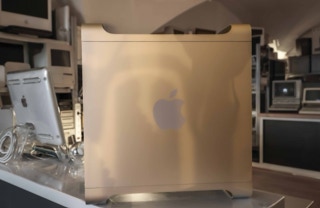

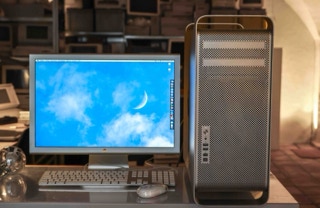

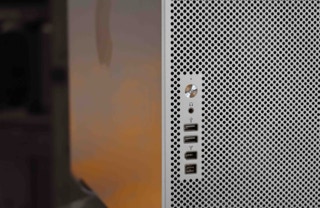

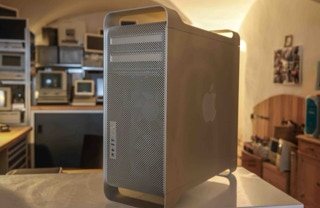

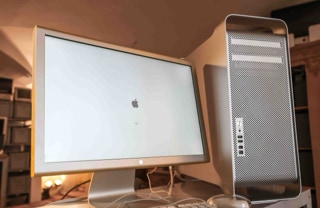

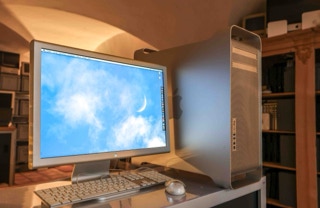

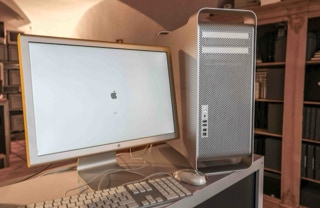

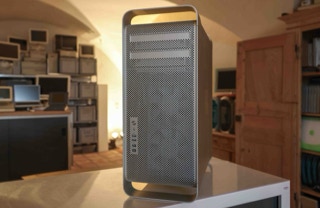

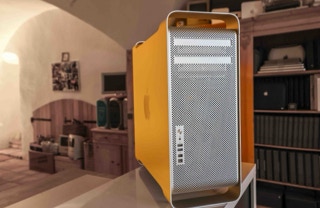

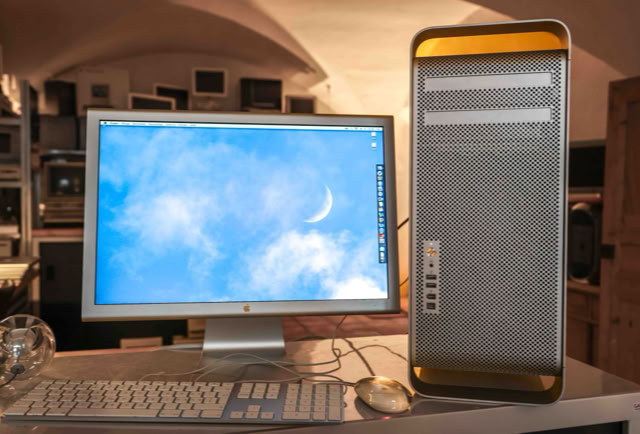

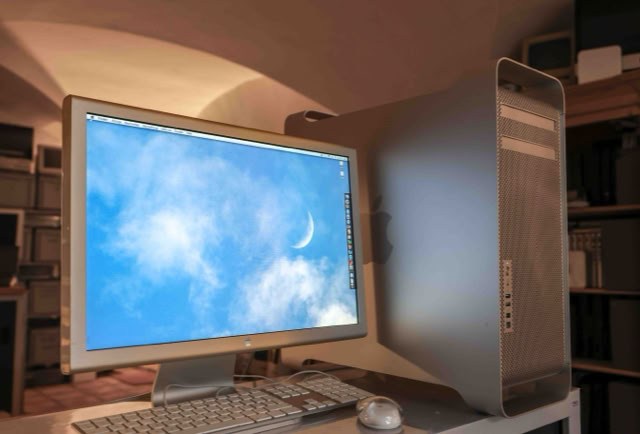

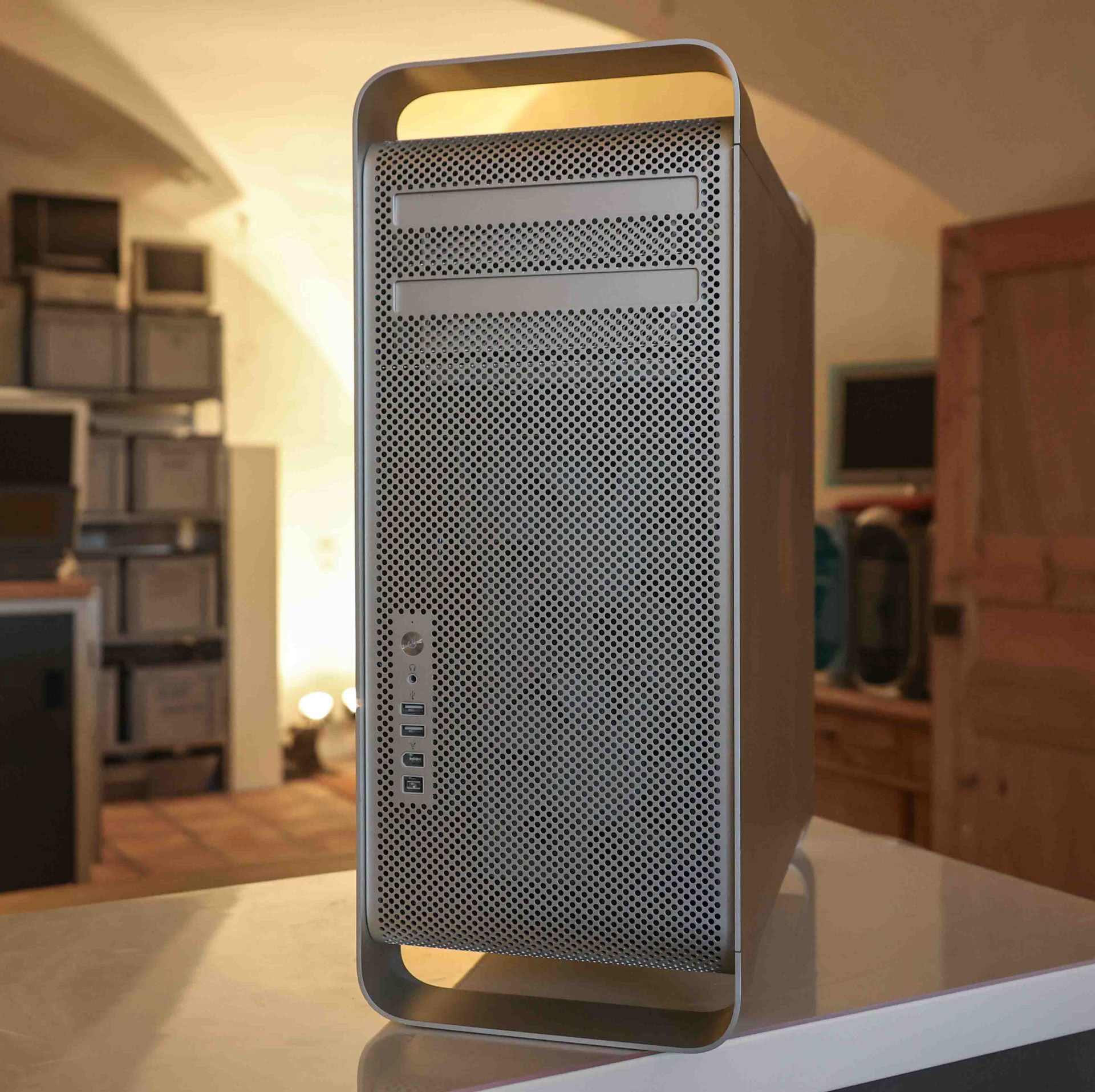

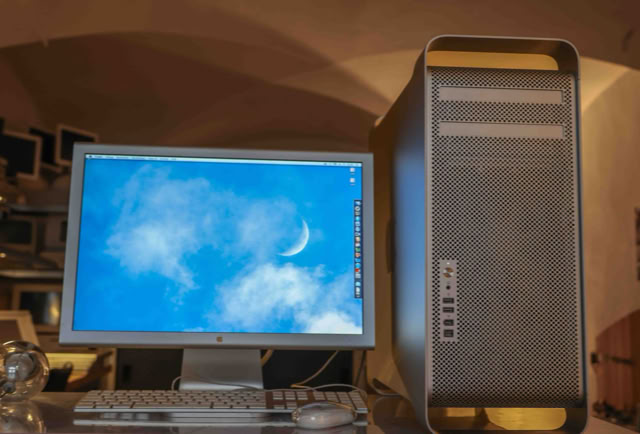

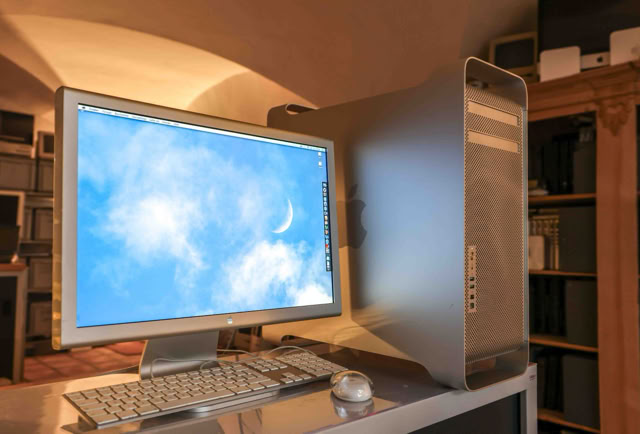

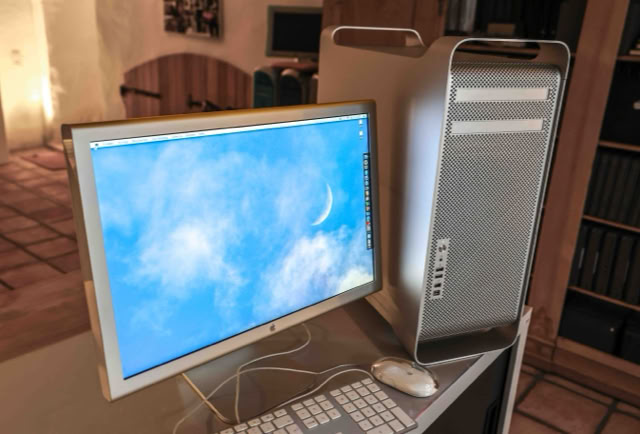

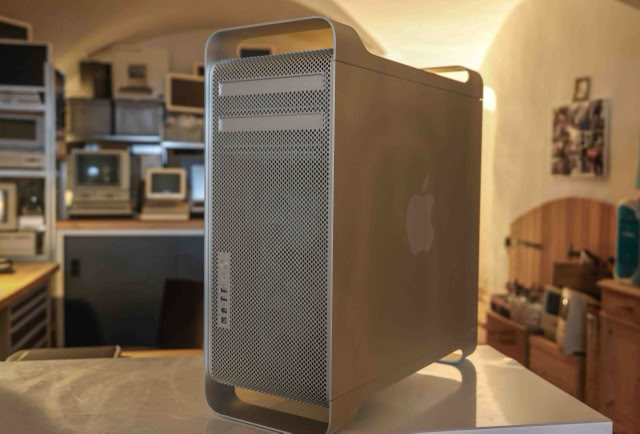

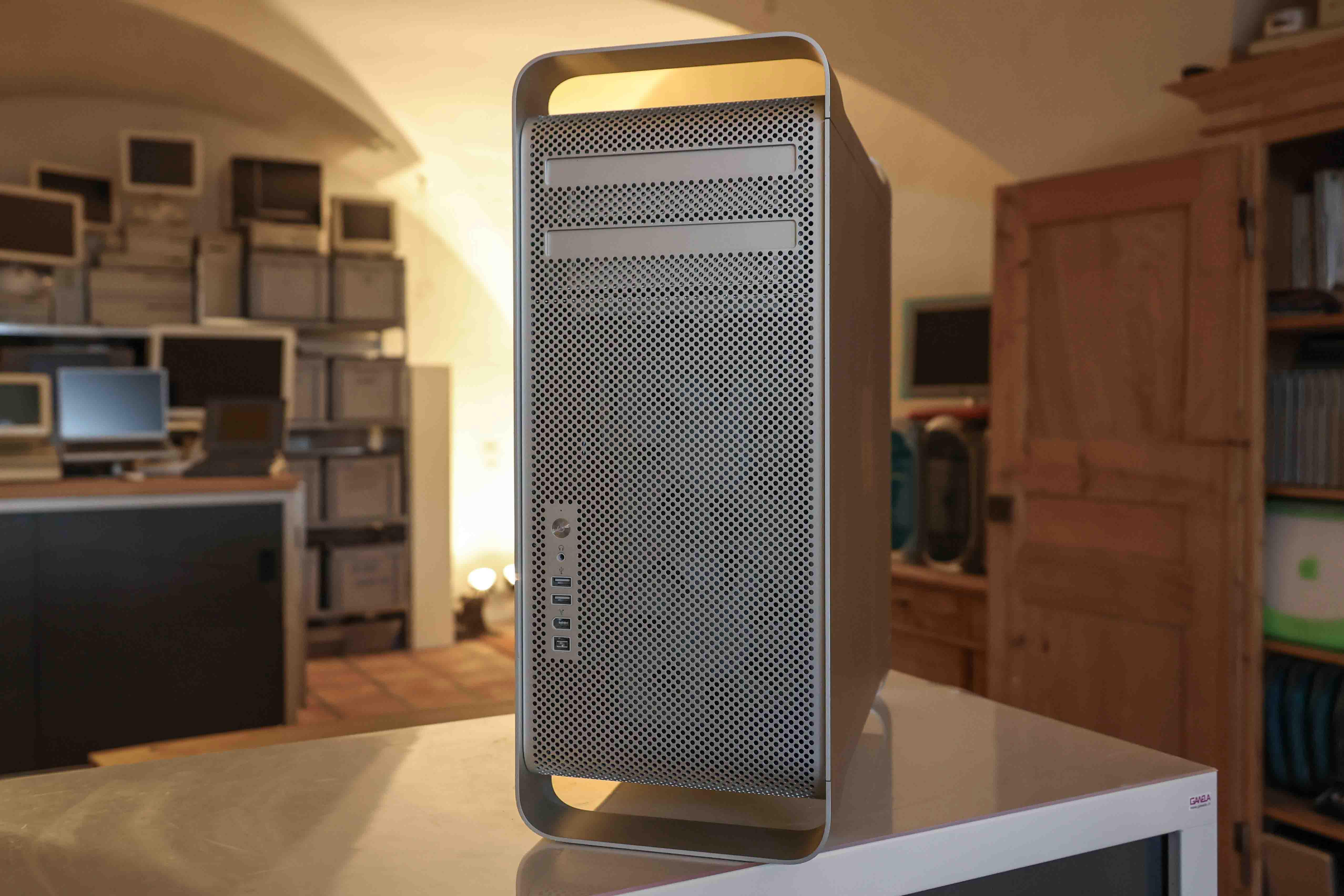

power macintosh G5

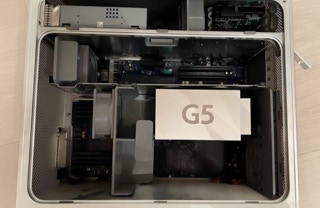

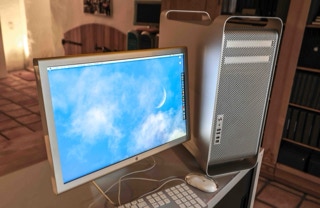

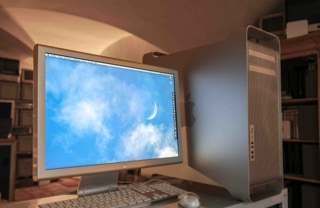

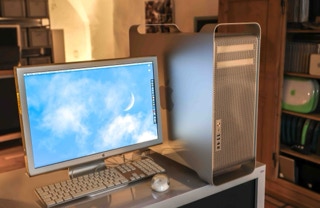

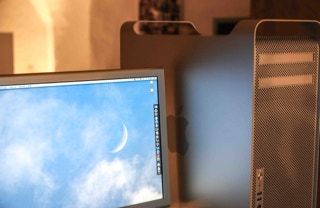

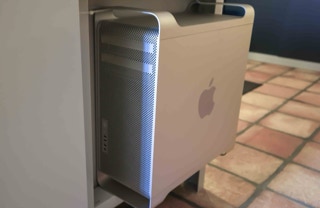

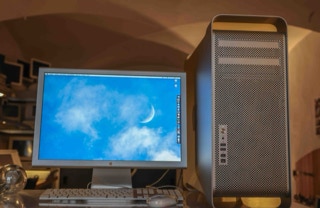

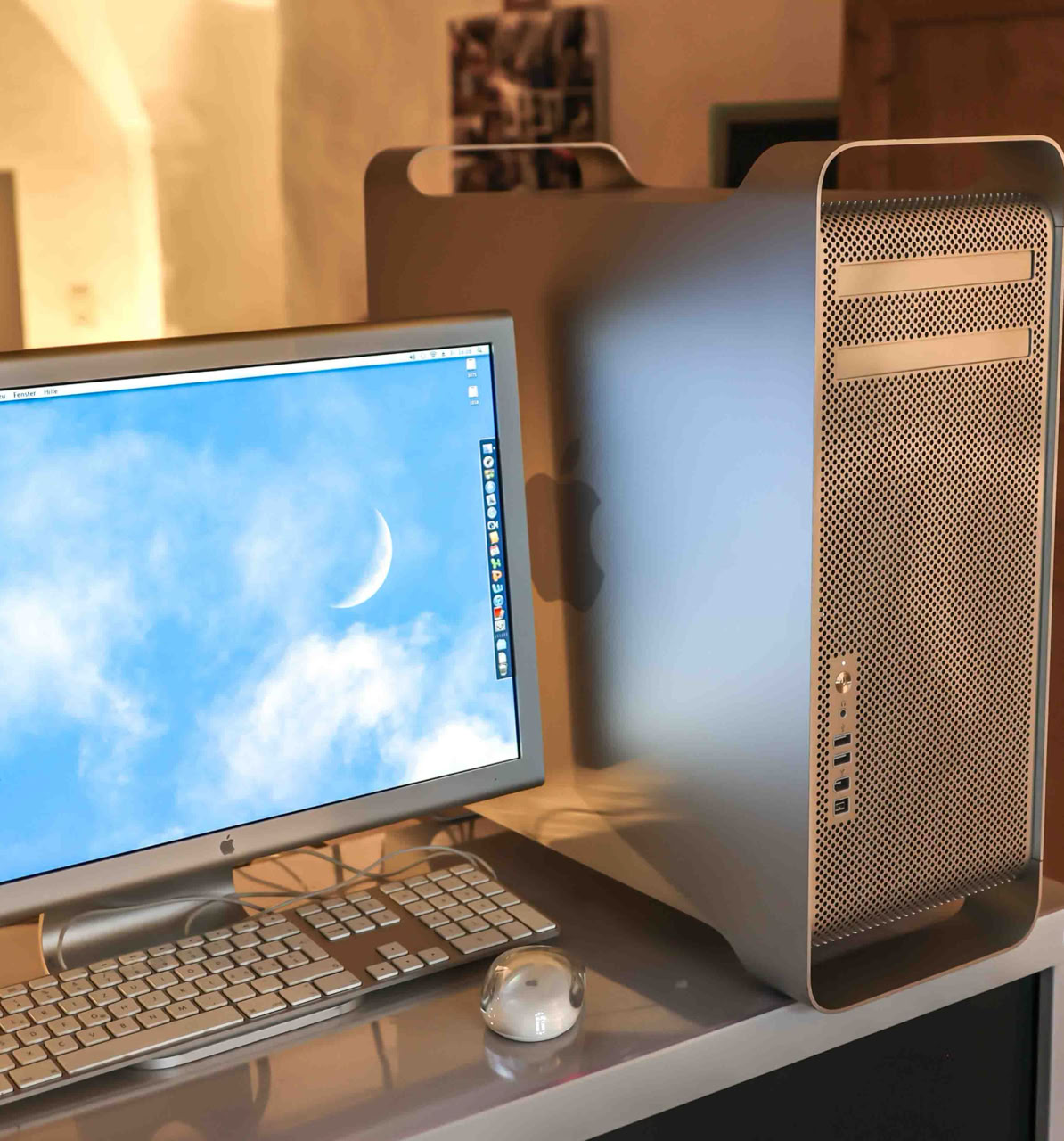

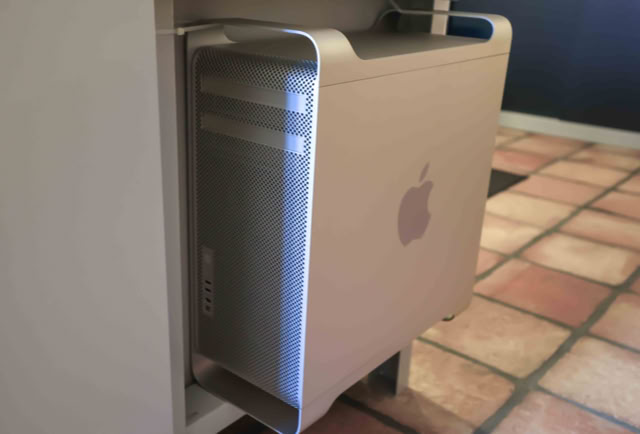

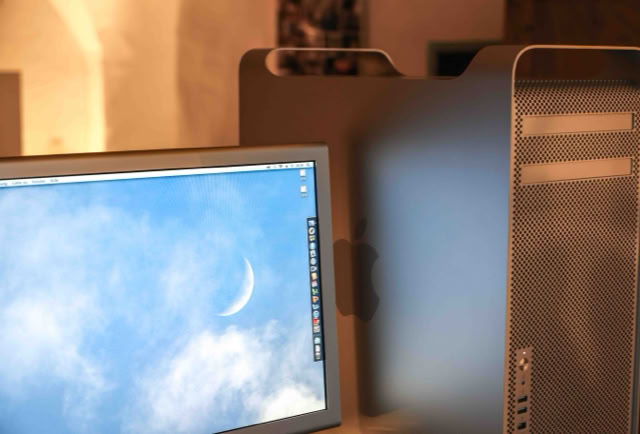

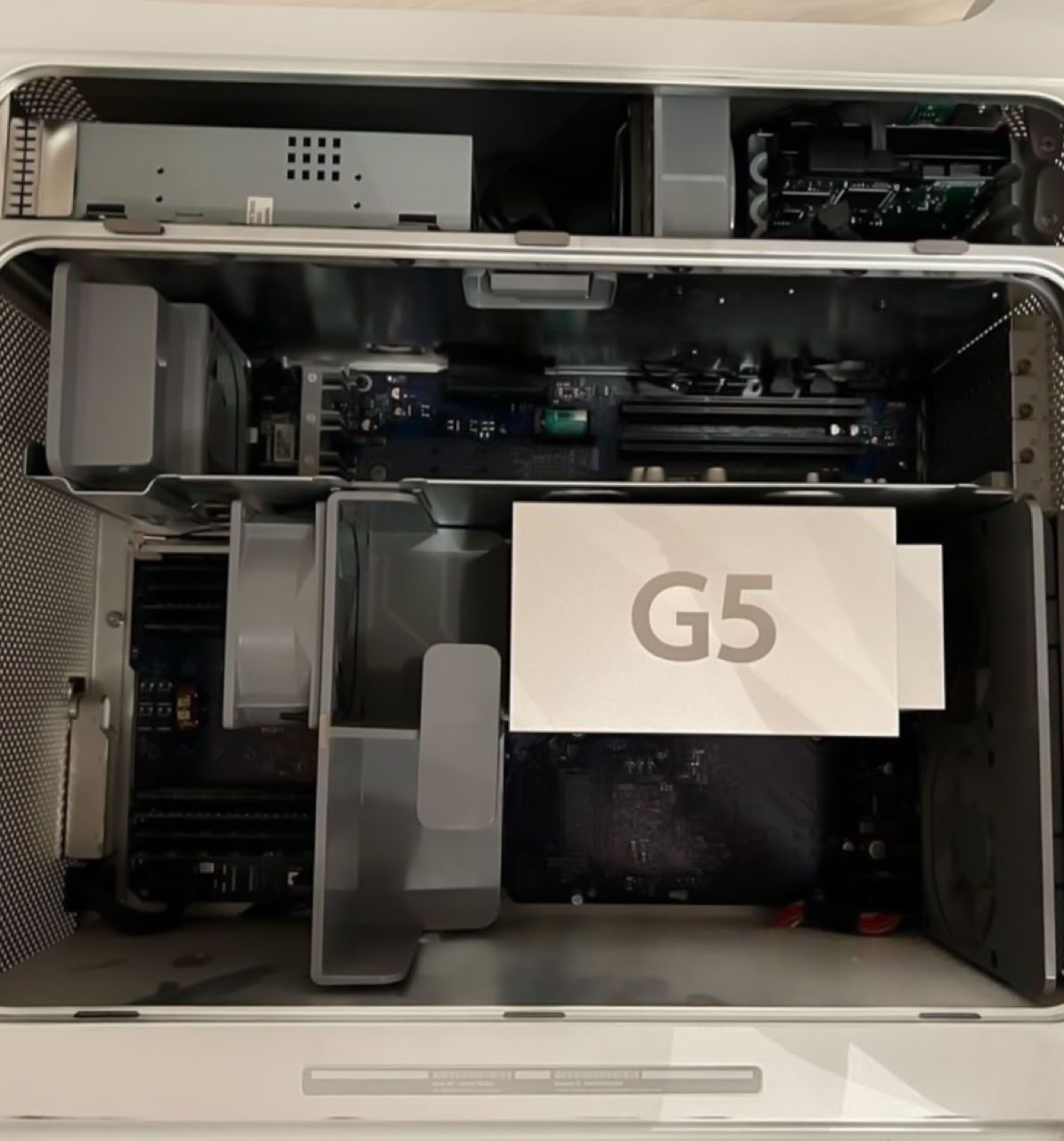

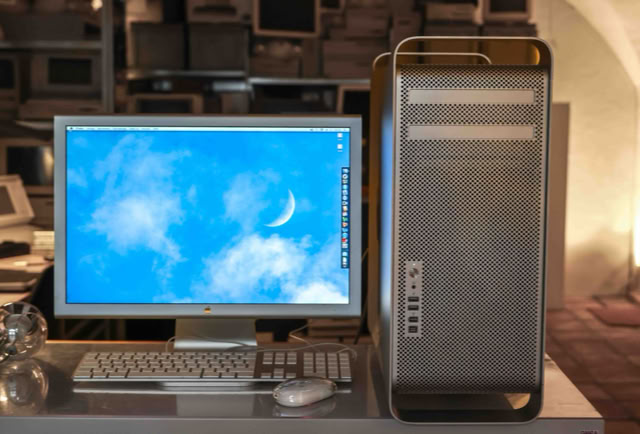

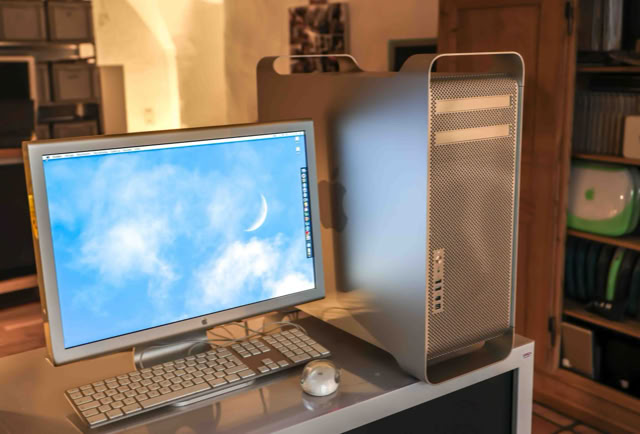

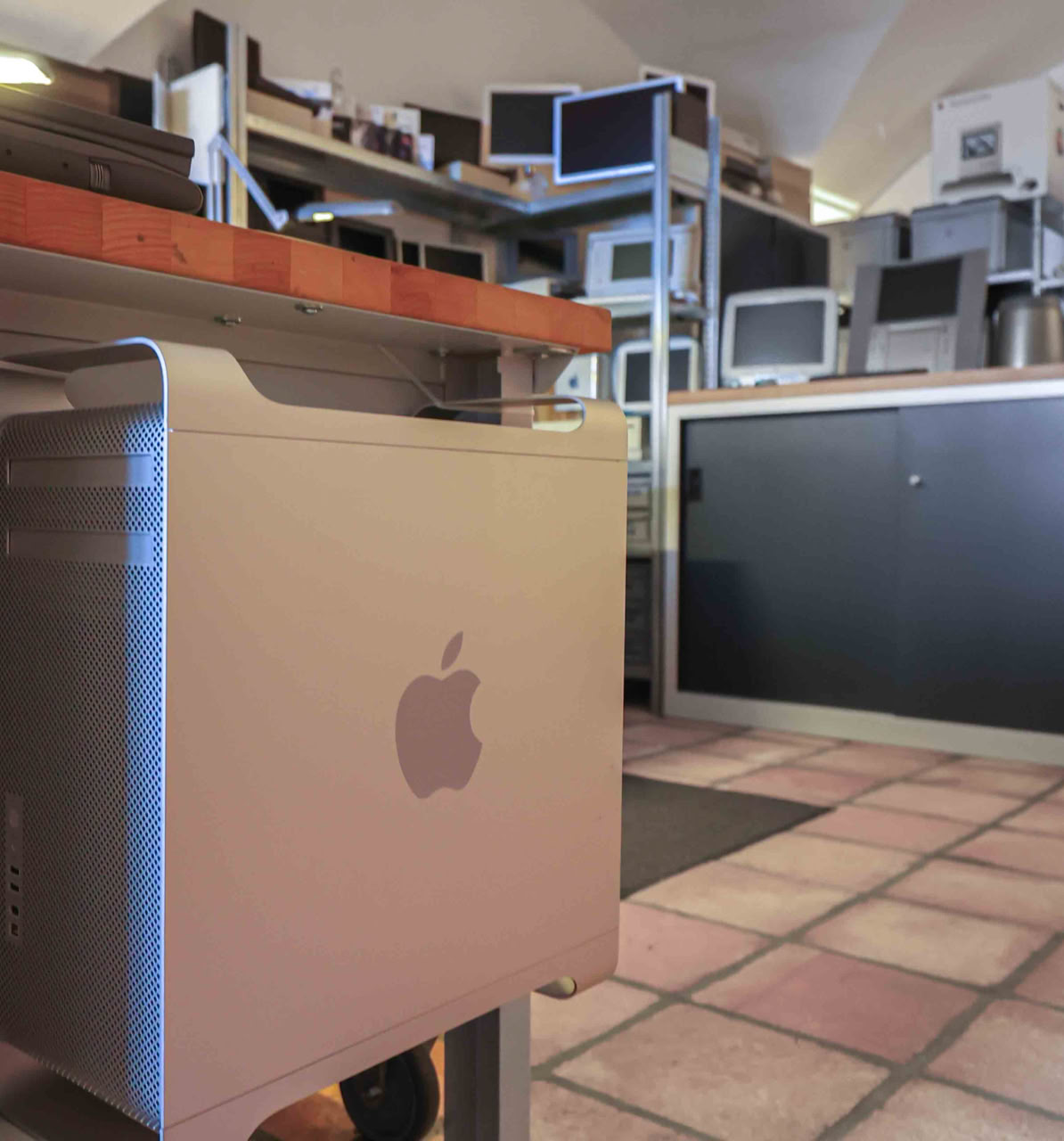

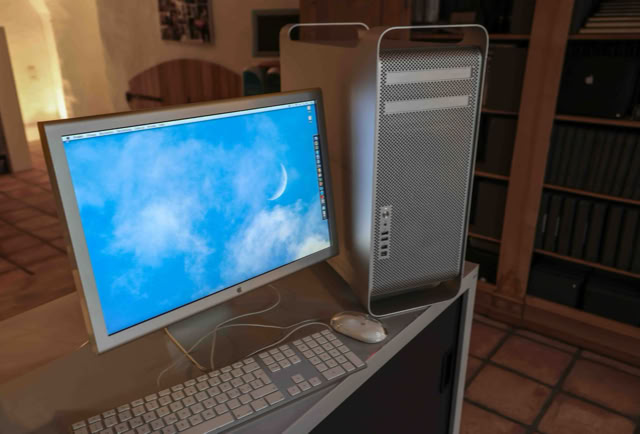

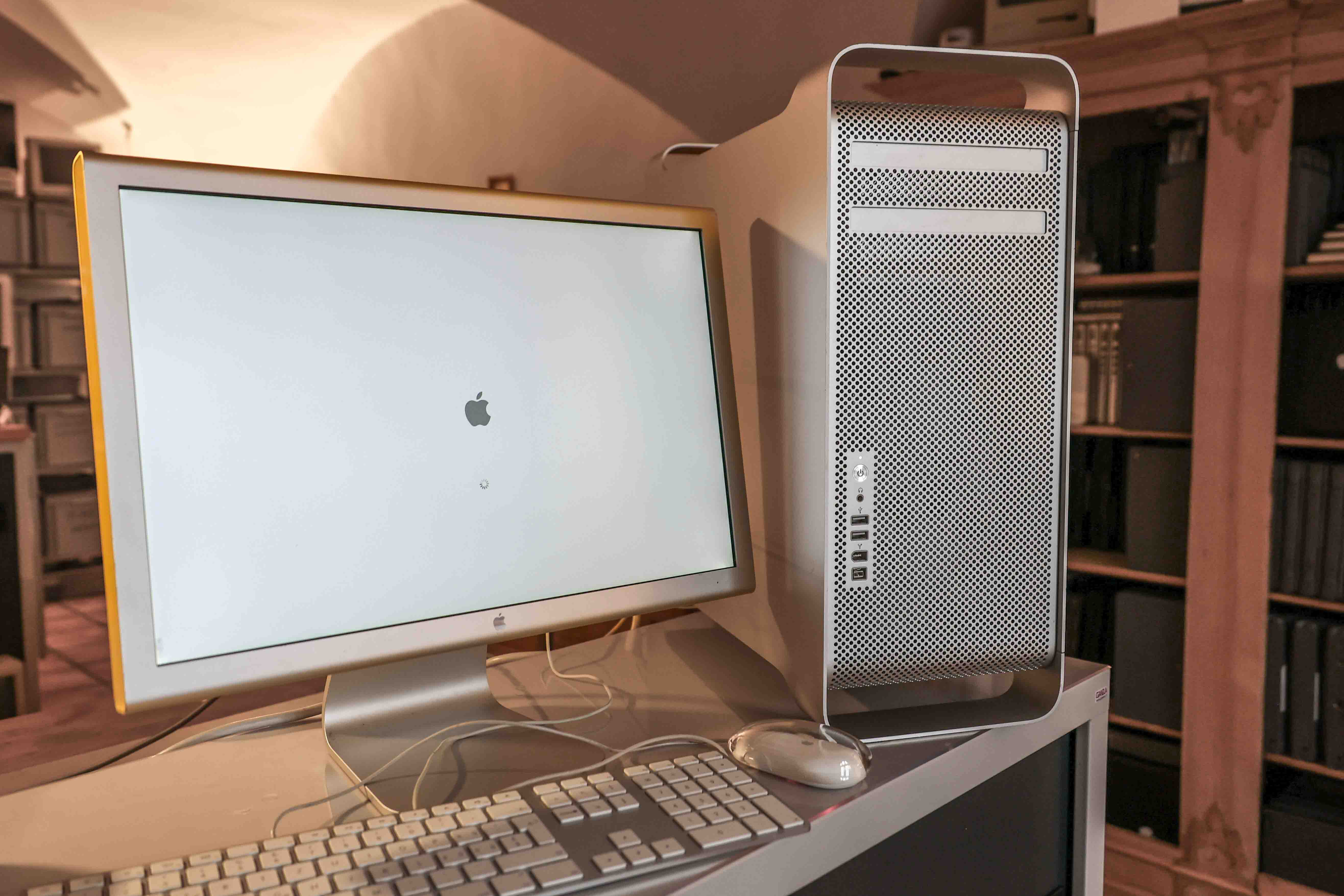

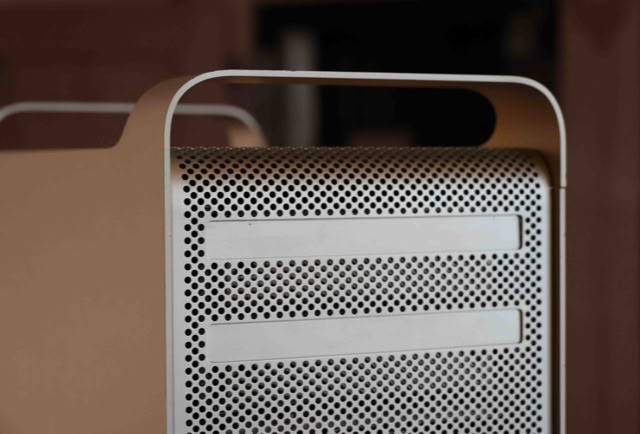

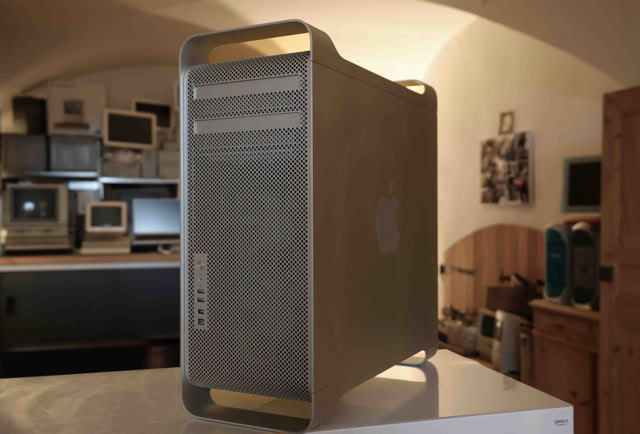

The power macintosh G5 was apple's long-awaited fifth generation powerpc-based machine. In an important move, apple decided to break with motorola, and used an IBM-designed processor. motorola had been chronically delayed for both processor design and shipment, and was at least a year away from its fifth-generation powerpc CPU.  apple and ibm had worked closely together for nearly a year of the powerpc 970 processor and the 64-bit powermac G5 represented a huge leap forward in both processor and machine design. Housed in an innovative new aluminum enclosure, the powermac G5 was the first 64-bit consumer-level desktop computer ever sold. It included a variety of logic board enhancements, including PCI-X slots, and 8X AGP slot, a serial-ATA bus, and up to 8 GB of RAM. Most impressive of all was the front-side bus speed, which was increased to half of the processor speed-up to 1.0 GHz. This represented a more than six-fold improvement over the previous powermac G4 model.


Announced in october 2005, the powermac G5 was the first powermac to ship with dual-core powerpC G5 processors. It also included faster bus and memory speeds, larger hard drives on the low and middle-end models, better graphics cards, and PCI express expansion slots.
