powerbook 140
Minimum OS: 7.0.1
Maximum OS: 7.6.1
Introduced: October 1991
Terminated: August 1992
Processor
CPU: Motorola MC68030
CPU Speed: 16 MHz
FPU: none
Bus Speed: 16 MHz
Register Width: 32-bit
Data Bus Width: 32-bit
Address Bus Width: 32-bit
Level 1 Cache: 256 bytes data, 256 bytes instruction
ROM: 1 MB
RAM Type: unique
Min RAM Speed: 100 ns
Onboard RAM: 2 MB
RAM slots: 1
Maximum RAM: 8 MB
Expansion Slots: modem
Video
Screen: Passive Matrix
Max Resolution: 1 bit 640x400
Storage
Hard Drive: 40-80 MB
Floppy Drive: 1.4 MB SuperDrive

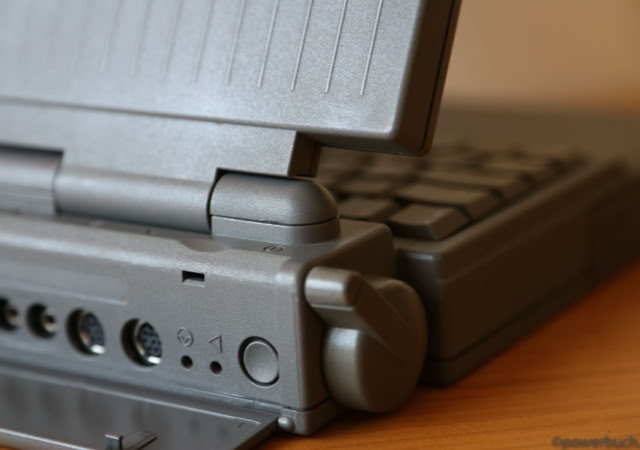

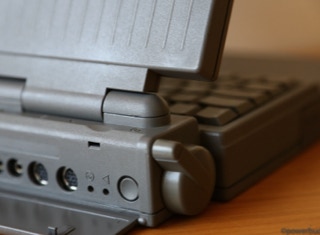

Input/Output
ADB: 1
Serial: 2 Mini DIN-8
SCSI: HDI-30
Audio Out: mono 8 bit mini
Audio In: mono 8 bit mini
Speaker: mono

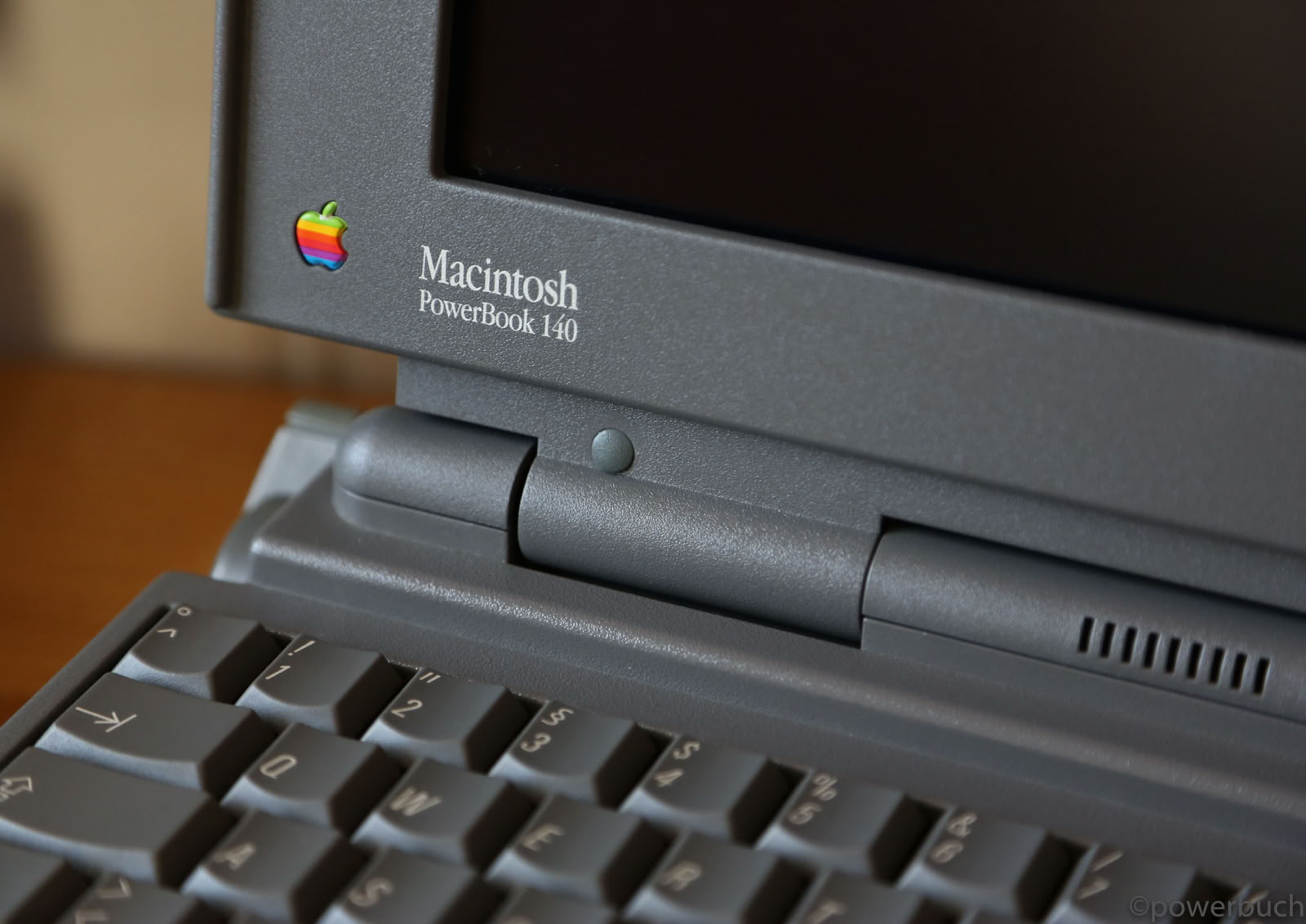

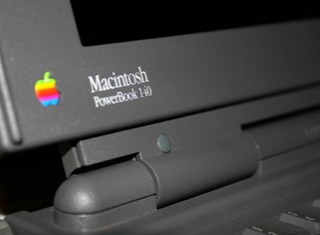

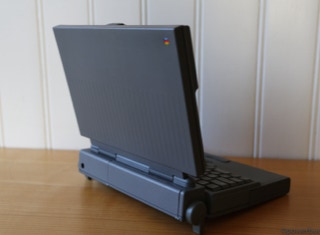

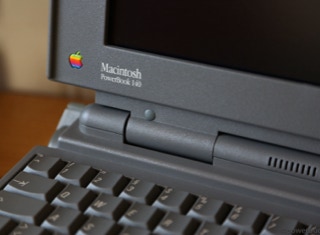

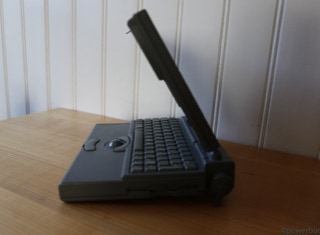

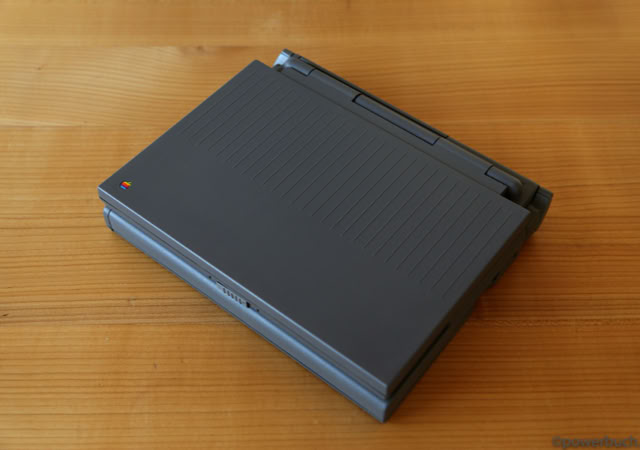

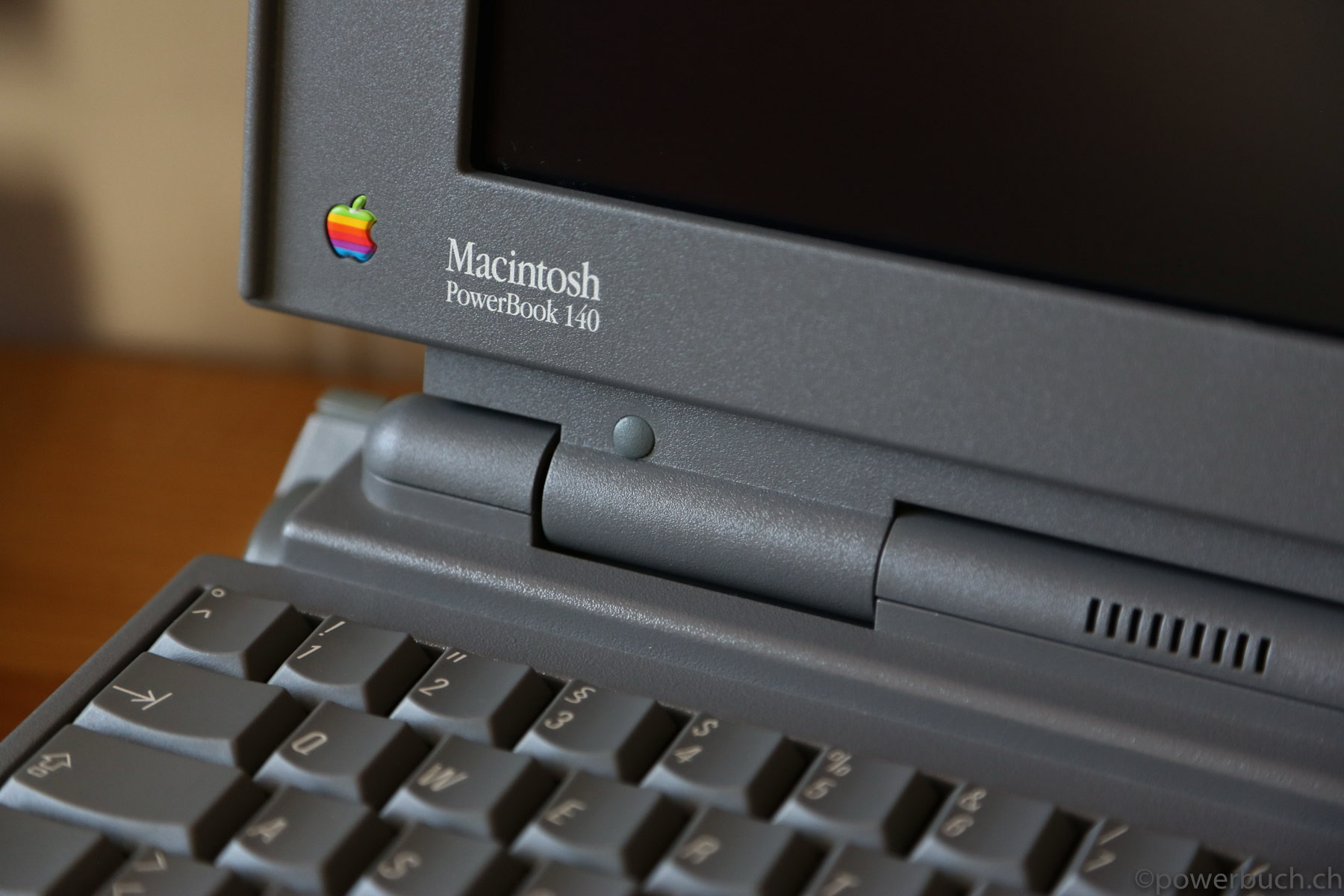

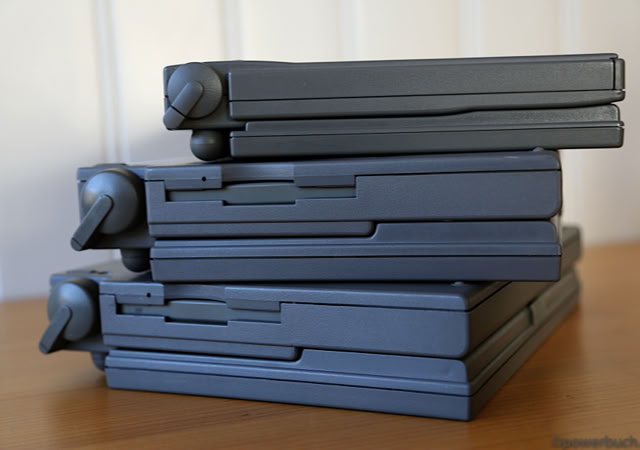

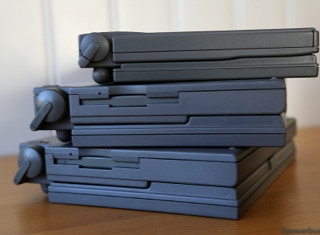

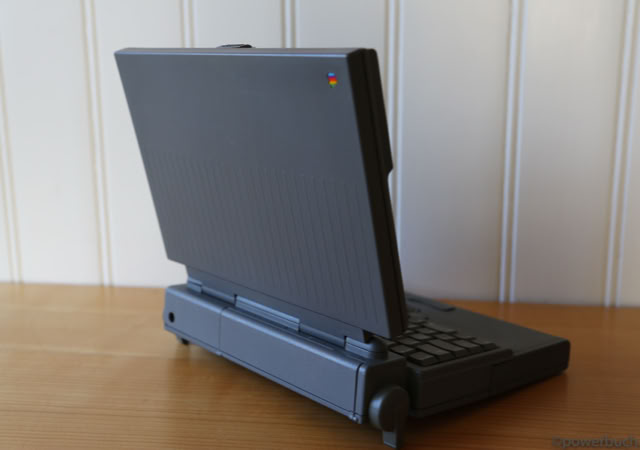

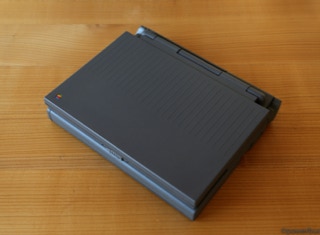

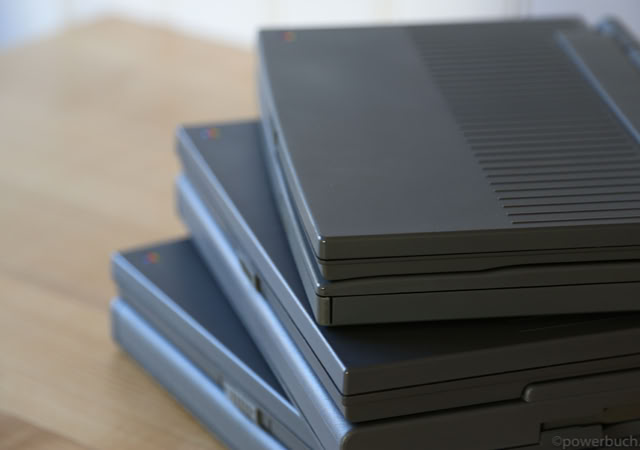

powerbook 140

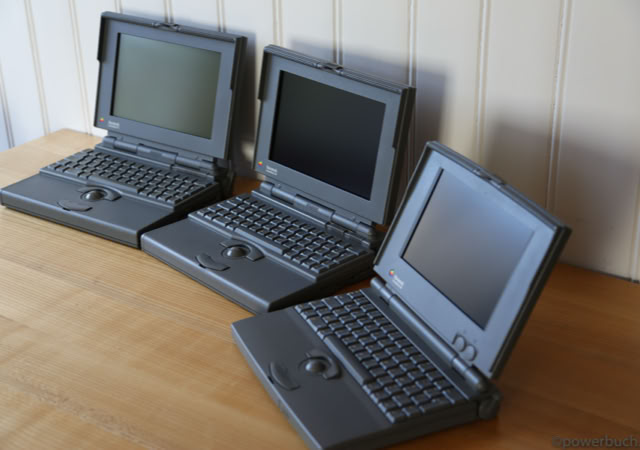

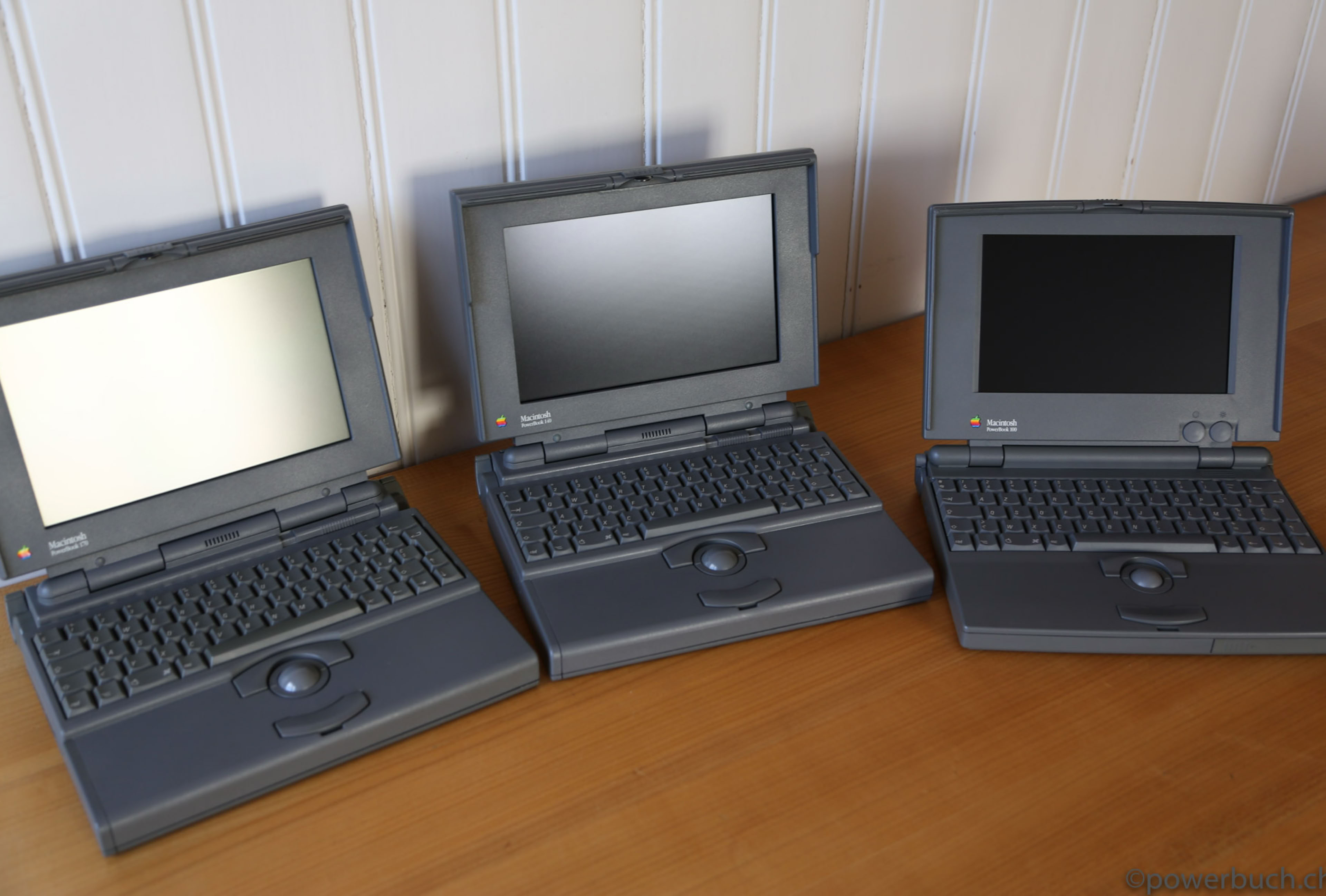

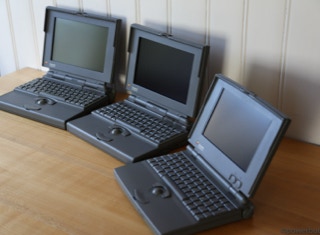

Simultaneously with the powerbook 100 apple launched out also the models powerbook 140 and powerbook 170 with system 7.0.1. In the powerbook 140 and 170 apple built its own board with considerably more powerful 68030 processor from motorola. 25 MHz L1 cache and even a floating-point unit made the powerbook 170 to a quite rapid portable device.
With $4,600 base price however you paid more than twice the price of the powerbook 100. But the 10"-active matrix LCD of the powerbook 170 with 640x400 pixels was brilliant.
Despite the problems inherent in the passive matrix screen, the powerbook 140 was anyway a remarkably viable machine.
