macintosh Iicx/ci/si/vx/vi

Minimum OS: 6.0.3

Maximum OS: 7.5.5

Introduced: Mar 1989

Terminated: Feb 1991

Processor

CPU: Motorola MC68030

CPU Speed: 16 MHz

FPU: 68882

Bus Speed: 16 MHz

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 256 kB

RAM Type: 30 pin SIMM

Min RAM Speed: 120 ns

Onboard RAM: 0 MB

RAM slots: 8

Maximum RAM: 128 MB

Level 1 Cache: 256 bytes data, 256 bytes instruction

Expansion Slots: 3 NuBus

Video

GPU: various

Storage

Hard Drive: 40-80 MB

Floppy Drive: 1 or 2 1.4 MB SuperDrive(s)

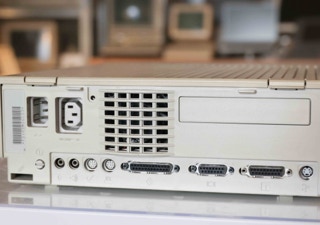

Input/Output

ADB: 2

Serial: 2 Mini DIN-8

SCSI: DB-25

Audio Out: stereo 8 bit mini

Speaker: mono

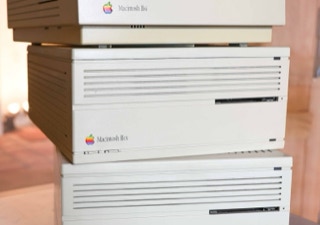

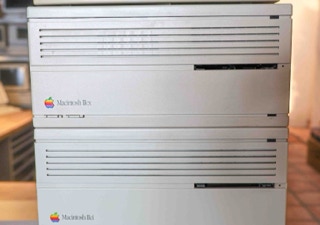

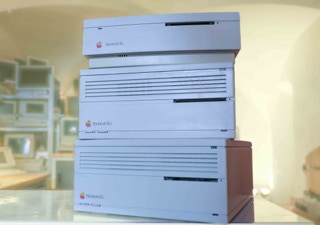

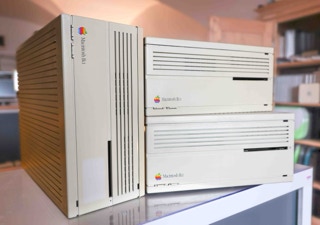

macintosh IIcx, IIci, IIsi, IIvx, IIvi

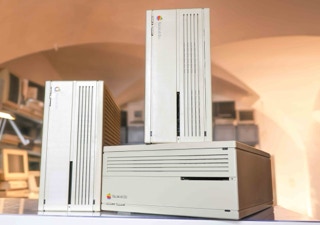

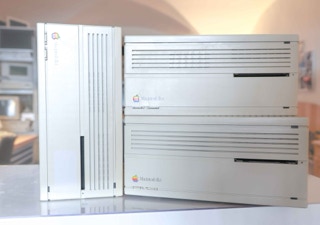

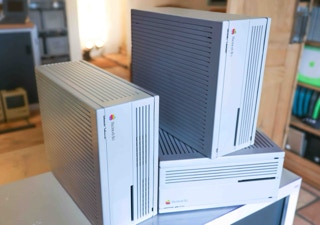

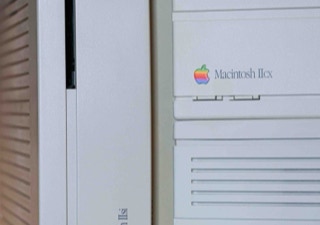

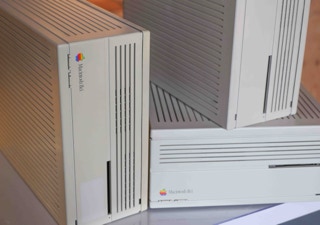

Half a year after release of the macintosh IIx the macintosh IIcx introduced with same performance in 1989 . The design was made much more compact by reducing the number of nubus slots from 6 to 3. The new case, apple's first to be designed to operate in either horizontal or vertical orientation, remained in use for its successors the IIci and quadra 700.

The mac IIci was a faster version of the IIcx, and one of the more popular macs ever. It was the first mac to have built in color video circuitry, and the first mac with 32-bit clean ROMs.

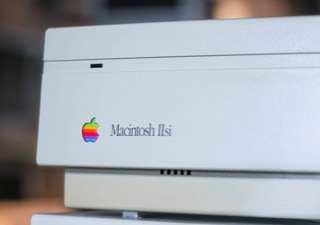

The IIsi came 1990 in a streamlined case used only for this model. It was originally designed for a 25 MHz 68030 processor, but shipped at 20 MHz, so it wouldn't compete with the IIci.

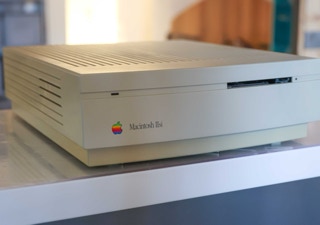

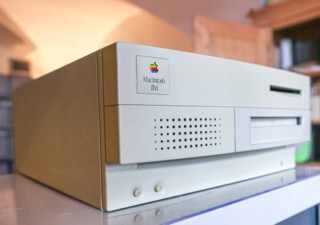

The IIvx introduced 1992 in a new case design (the first case built with an internal CD-ROM in mind), and ran on a 32 MHz 68030 processor with a 68882 FPU. The IIvi was exactly the same as the IIvx, but with a 16 MHz 68030 processor, and no FPU.
