macintosh LC-series

Minimum OS: 6.0.7

Maximum OS: 7.5.5

Introduced: Oct 1990

Terminated: Mar 1992

Processor

CPU: Motorola MC68020

CPU Speed: 16 MHz

FPU: none (upgradable)

Bus Speed: 16 MHz

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 512 kB

RAM Type: 30 pin SIMM

Min RAM Speed: 100 ns

Onboard RAM: 2 MB

RAM slots: 2

Maximum RAM: 10 MB

Level 1 Cache: 256 bytes instruction

Expansion Slots: 1 LC PDS

Video

VRAM: 256 kB (upgradable to 512 kB via one socket)

Max Resolution: 4-bit 640x480 or 8-bit 640x400

Video Out: DB-15

Storage

Hard Drive: 40-80 MB

Floppy Drive: 1.4 MB SuperDrive

Input/Output

ADB: 1

Serial: 2 Mini DIN-8

SCSI: DB-25

Audio Out/in: mono 8 bit

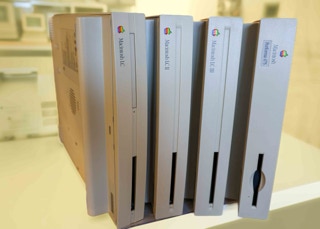

macintosh LC-series

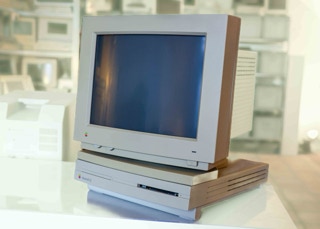

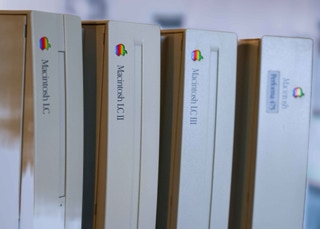

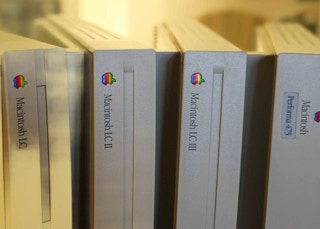

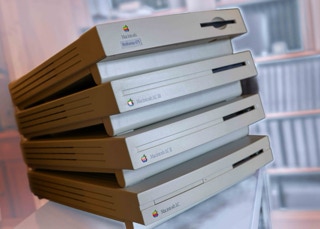

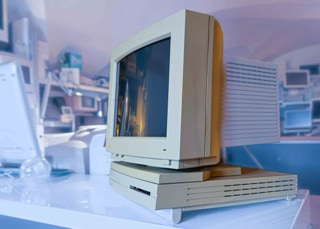

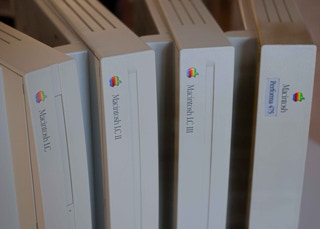

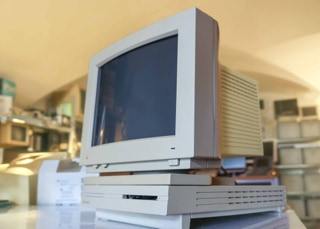

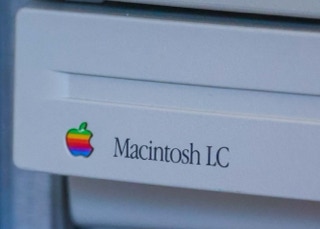

The mac LC was named for its low cost. It was aimed at the home market, and included a 16 MHz 68020 processor. It shipped inside a newly designed small case and was one of the first macs to come bundled with a microphone. It also came with a new pds slot, that became a standard in the LC family.

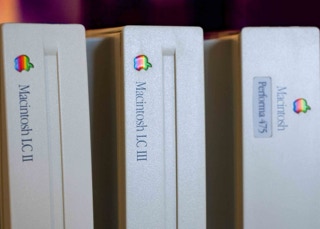

The LC II was essentially an upgrade of the original LC. Unfortunately, while Apple "speed-bumped" the processor to a 16 MHz 68030, they kept the 16-bit data path, making the speed improvement minimal (the 68030 was a 32-bit processor). The macintosh LC III was significantly faster, showing 2x performance in all major categories - CPU, disk, video and maths.

The most affordable macintosh LC ever, the LC 475 was released in october 1993. It had a 25 MHz 68LC040 processor, and came in a small newly designed case.
